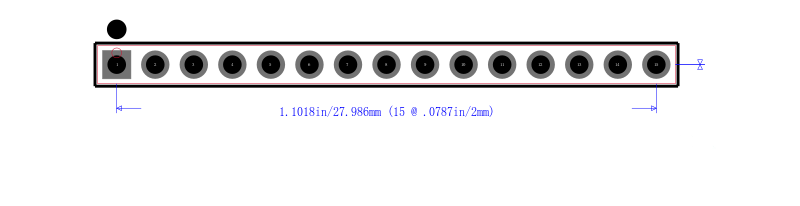

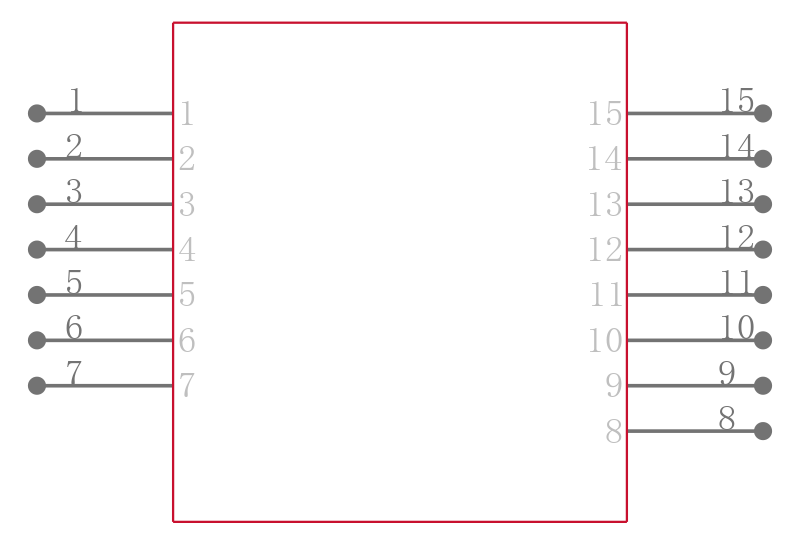

TMM-115-01-G-S

Conn Unshrouded Header HDR 15POS 2mm Solder ST Thru-Hole

针座 通孔 15 位置 0.079"（2.00mm）

得捷:
CONN HEADER VERT 15POS 2MM

艾睿:
Samtec&s;s unshrouded TMM-115-01-G-S header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 15 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 500 VAC. It has a header type gender. Its pitch is 2 mm. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 30 mm long, 4.7 mm tall and 1.97 mm deep. TMM-115-01-G-S is housed in black liquid crystal polymer.
