TMM-122-01-G-D

Conn Unshrouded Header HDR 44POS 2mm Solder ST Thru-Hole

针座 通孔 44 位置 0.079"（2.00mm）

得捷:
CONN HEADER VERT 44POS 2MM

艾睿:

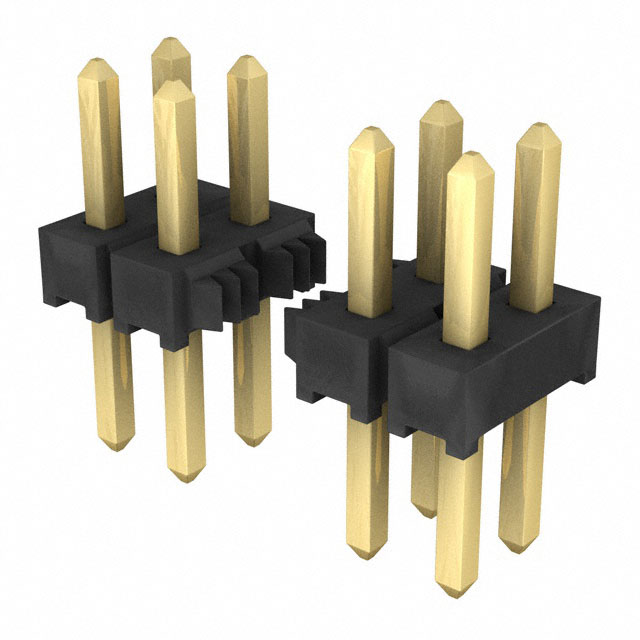

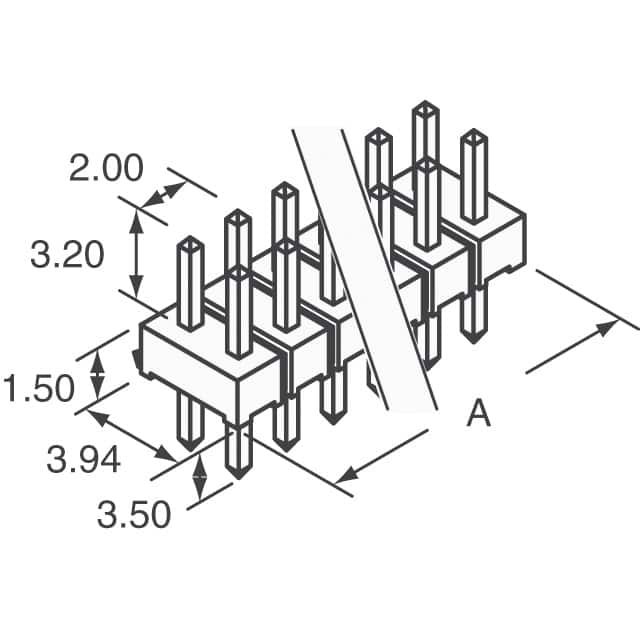

Samtec brings you their unshrouded TMM-122-01-G-D header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 44 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 500 VAC. Its pitch is 2 mm. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TMM-122-01-G-D is housed in black liquid crystal polymer. This product is 44 mm long, 4.7 mm tall and 3.94 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 44 POS 2mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 44 POS 2mm Solder ST Top Entry Thru-Hole Bulk
