TSW-125-08-S-D-RA

Conn Unshrouded Header HDR 50POS 2.54mm Solder RA Thru-Hole

Connector Header Through Hole, Right Angle 50 position 0.100" 2.54mm

得捷:
CONN HEADER R/A 50POS 2.54MM

艾睿:

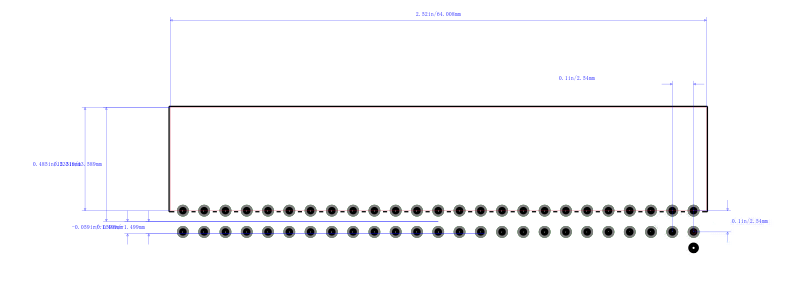

Samtec&s;s unshrouded TSW-125-08-S-D-RA header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 450 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-125-08-S-D-RA is housed in black polyester. It uses the solder termination method. This product is 63.5 mm long, 5.56 mm tall and 12.44 mm deep. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Unshrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole
