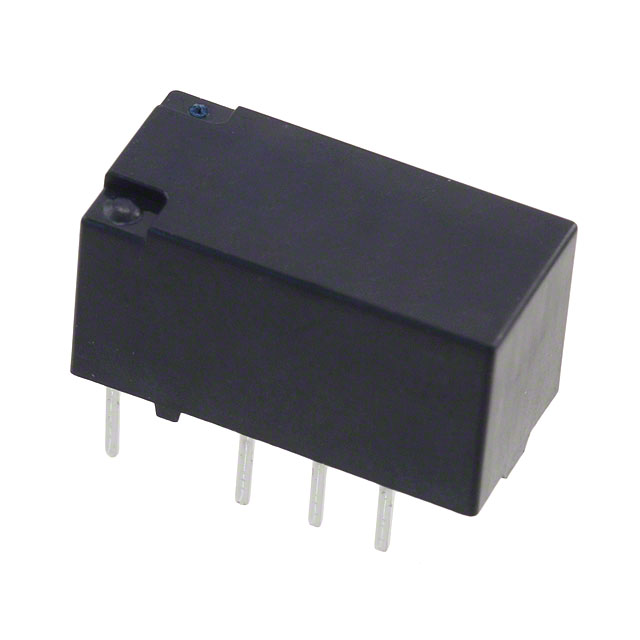

Electromechanical Relay DPDT 2A 3VDC 45Ω Through Hole
General Purpose Relay DPDT 2 Form C Through Hole
得捷:
RELAY GEN PURPOSE DPDT 2A 3VDC
艾睿:
Signal Relay 3VDC 1A DPDT15x7.4x8.2mm THT
Allied Electronics:
RELAY GENERAL PURPOSE DPDT 2A 3V
Chip1Stop:
Electromechanical Relay DPDT 2A 3VDC 45Ohm Through Hole
Newark:
# PANASONIC ELECTRIC WORKS TXD2-3V-6 Signal Relay, DPDT, 3 VDC, 2 A, TX-D Series, Through Hole, Non Latching
Electro Sonic:
Electromechanical Relay 3VDC 45Ohm 2A DPDT 15x7.4x8.2mm THT General Purpose Relay
触点类型 DPDT
功耗 200 mW
触点额定电流 2 A
线圈电压 3 VDC
线圈电流 66.7 mA
线圈电阻 45 Ω
额定电流Max 2 A
线圈电压DC 3 V
线圈功率 200 mW
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 DIP
长度 15 mm
宽度 7.4 mm
高度 8.2 mm
封装 DIP
触点材质 Silver, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
