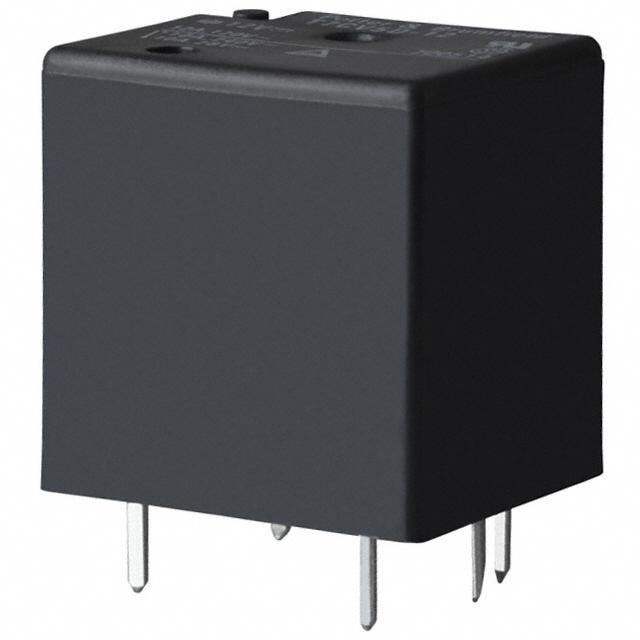

通用继电器 SPST-NO 12A 12VDC MINI PCB RELAY
Electromechanical Relay 12VDC 400Ohm 10A SPST-NO 20.2x16.5x20.2mm THT Power Relay
Product Highlights
T7C Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 12 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPST 12A 12V
贸泽:
通用继电器 SPST-NO 12A 12VDC MINI PCB RELAY
Chip1Stop:
Electromechanical Relay SPST-NO 10A 12VDC 400Ohm Through Hole
Verical:
Power Relay 12VDC 10A SPST-NO20.2x16.5x20.2mm THT
MASTER:
Electromechanical Relay 12VDC 400Ohm 10A SPST-NO 20.2x16.5x20.2mm THT Power Relay
Online Components:
Electromechanical Relay 12VDC 400Ohm 10A SPST-NO 20.2x16.5x20.2mm THT Power Relay
Electro Sonic:
Electromechanical Relay 12VDC 400Ohm 10A SPST-NO 20.2x16.5x20.2mm THT Power Relay
Win Source:
General Purpose Relay SPST-NO 1 Form A 12VDC Coil Through Hole
输入电压DC 12.0 V
触点类型 SPST-NO
功耗 360 mW
触点额定电流 12 A
线圈电压 12 VDC
线圈电流 30 mA
线圈功率DC 360 mW
线圈电阻 400 Ω
额定电流Max 10 A
线圈电压DC 12 V
线圈功率 360 mW
额定电压DC Max 24 V
额定电压AC Max 240 V
安装方式 Through Hole
引脚数 4
长度 20.2 mm
宽度 16.5 mm
高度 20.2 mm
触点材质 Silver Cadmium Oxide
工作温度 -30℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
