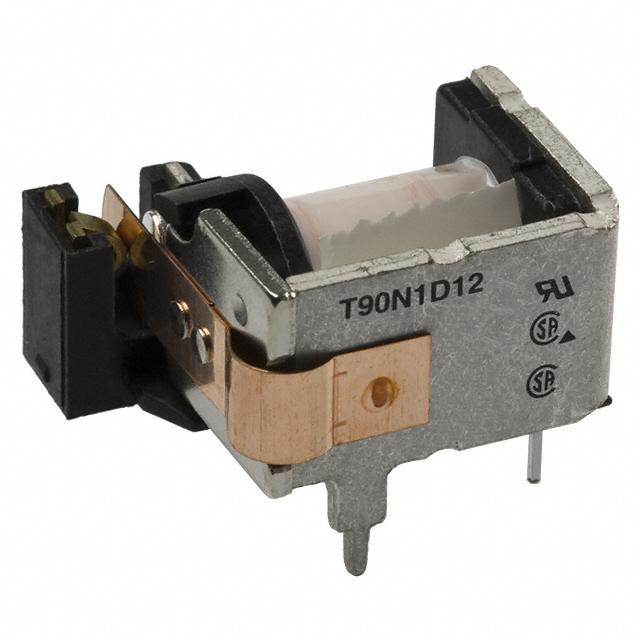

Power Relay 18VDC 30A SPST-NO 30.5mm 24.13mm 17.27mm Through Hole
Power Relay 18VDC 30A SPST-NO30.5x24.13x17.27mm THT
Product Highlights
T90 Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 30 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPST 30A 18V
贸泽:
General Purpose Relays RELAY PWR SPST 30A 18VDC PCB
艾睿:
Power Relay 18VDC 30A SPST-NO30.5x24.13x17.27mm THT
Chip1Stop:
Electromechanical Relay SPST-NO 30A 18VDC 380Ohm Through Hole
MASTER:
Power Relay 18VDC 30A SPST-NO30.5x24.13x17.27mm THT
Online Components:
Power Relay 18VDC 30A SPST-NO30.5x24.13x17.27mm THT
Electro Sonic:
Power Relay 18VDC 30A SPST-NO30.5x24.13x17.27mm THT
输入电压DC 18.0 V
触点类型 SPST-NO
功耗 900 mW
触点额定电流 30 A
线圈电压 18 VDC
线圈电流 47 mA
线圈功率DC 850 mW
线圈电阻 380 Ω
线圈电压DC 18 V
线圈功率 900 mW
开关电流Max 30 A
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Through Hole
长度 30.5 mm
宽度 24.13 mm
高度 17.27 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
