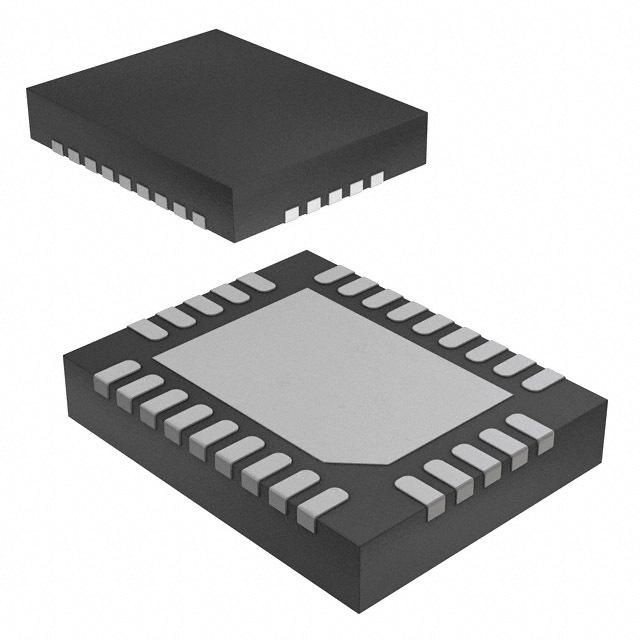

TEXAS INSTRUMENTS TPS548A20RVET 直流-直流开关同步降压稳压器, 可调, 1.5V-20V输入, 600mV-5.5V/15A输出, 1 MHz, VQFN-28 新
The TPS548A20 is a small-sized, synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device offers ease-of-use and low bill-of-material count for space-conscious power systems.
This device features high-performance integrated MOSFETs, accurate 0.6-V reference, and an integrated boost switch. Competitive features include very-low external-component count, fast load-transient response, auto-skip mode operation, internal soft-start control, and no requirement for compensation.
A forced continuous conduction mode helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS548A20 is available in a 28-pin VQFN-CLIP package and is specified from –40°C to 125°C ambient temperature.
输出接口数 1
输出电压 0.6V ~ 5.5V
输出电流 15 A
针脚数 28
静态电流 1.35 mA
调节输出数 1
开关频率 1 MHz
拓扑结构 Buck
输入电压Max 20 V
输入电压Min 1.5 V
输出电压Max 5.5 V
输出电压Min 600 mV
输出电流Max 15 A
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 1.5V ~ 20V
安装方式 Surface Mount
引脚数 28
封装 VQFN-28
宽度 3.6 mm
封装 VQFN-28
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS548A20RVET TI 德州仪器 | 当前型号 | 当前型号 |
TPS548A20RVER 德州仪器 | 类似代替 | TPS548A20RVET和TPS548A20RVER的区别 |
