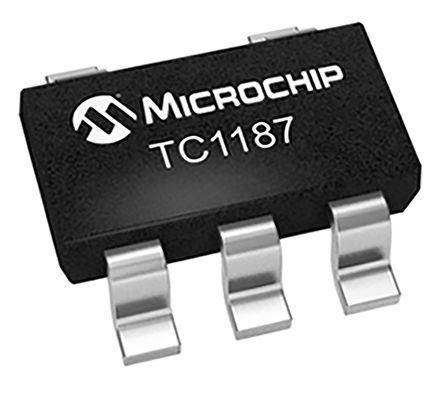

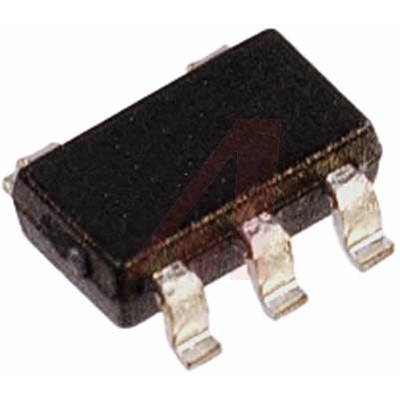

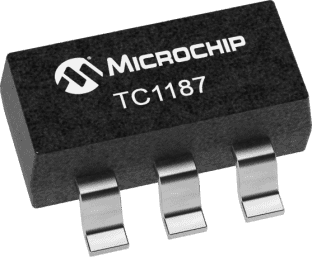

TC1187VCT713

MICROCHIP  TC1187VCT713  电压稳压器, LDO, 可调, 2.7V至6V输入, 270mV压差, 1.2V至5.5V/150mA输出, SOT-23-5

TC1187 低压降电压稳压器

TC1187 是低压降 LDO 调节器，带有可调输出电压和 150 mA 输出电流。 具有低噪声操作、非常低的满负载压降电压和步进负载变化快速响应。 输出电压，通过简单的电阻器分压器（从 VOUT 到 ADJ 引脚）可编程。

### 特点

可调输出电压：1.2V - 5.5V

270 mV 满负载压降电压（典型）

150 mA 输出电流

省电关闭模式

过电流和过温保护

引脚与双极调节器

50 μA 接地电流，用于更长的电池寿命

得捷:
IC REG LIN POS ADJ 150MA SOT23-5

欧时:
### TC1187 低压降电压稳压器Microchip TC1187 是低压降 LDO 调节器，带有可调输出电压和 150 mA 输出电流。 具有低噪声操作、非常低的满负载压降电压和步进负载变化快速响应。 输出电压，通过简单的电阻器分压器（从 VOUT 到 ADJ 引脚）可编程。### 特点可调输出电压：1.2V - 5.5V 270 mV 满负载压降电压（典型） 150 mA 输出电流 省电关闭模式 过电流和过温保护 引脚与双极调节器 50 μA 接地电流，用于更长的电池寿命 ### LDO（低压降）线性电压调节器，Microchip

e络盟:
电压稳压器, LDO, 可调, 2.7V至6V输入, 270mV压差, 1.2V至5.5V/150mA输出, SOT-23-5

艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO TC1187VCT713 linear regulator from Microchip Technology. Its typical dropout voltage at current is 0.002@0.1mA|0.065@20mA|0.085@50mA|0.18@100mA|0.27@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 6 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.165 to 5.5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.5%Typ and line regulation of 0.05%Typ. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. The maximum dropout voltage is 0.12@50mA|0.25@100mA|0.4@150mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

Allied Electronics:
150mA Adjustable LDO w/ Shutdown5 SOT-23 T/R

安富利:
LDO Regulator Pos 1.165V to 5.5V 0.15A 5-Pin SOT-23 T/R

Chip1Stop:
LDO Regulator Pos 1.165V to 5.5V 0.15A 5-Pin SOT-23 T/R

Newark:
# MICROCHIP  TC1187VCT713  IC, REG LDO, ADJ, 150MA, SOT23A-5
