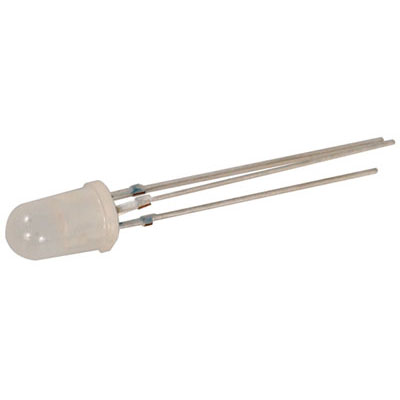

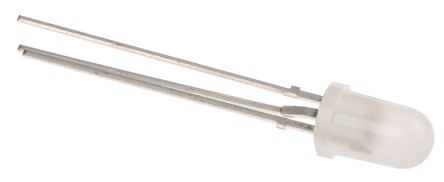

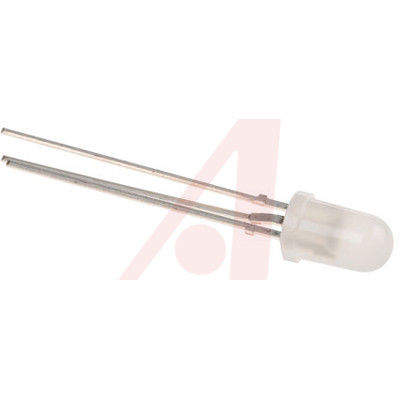

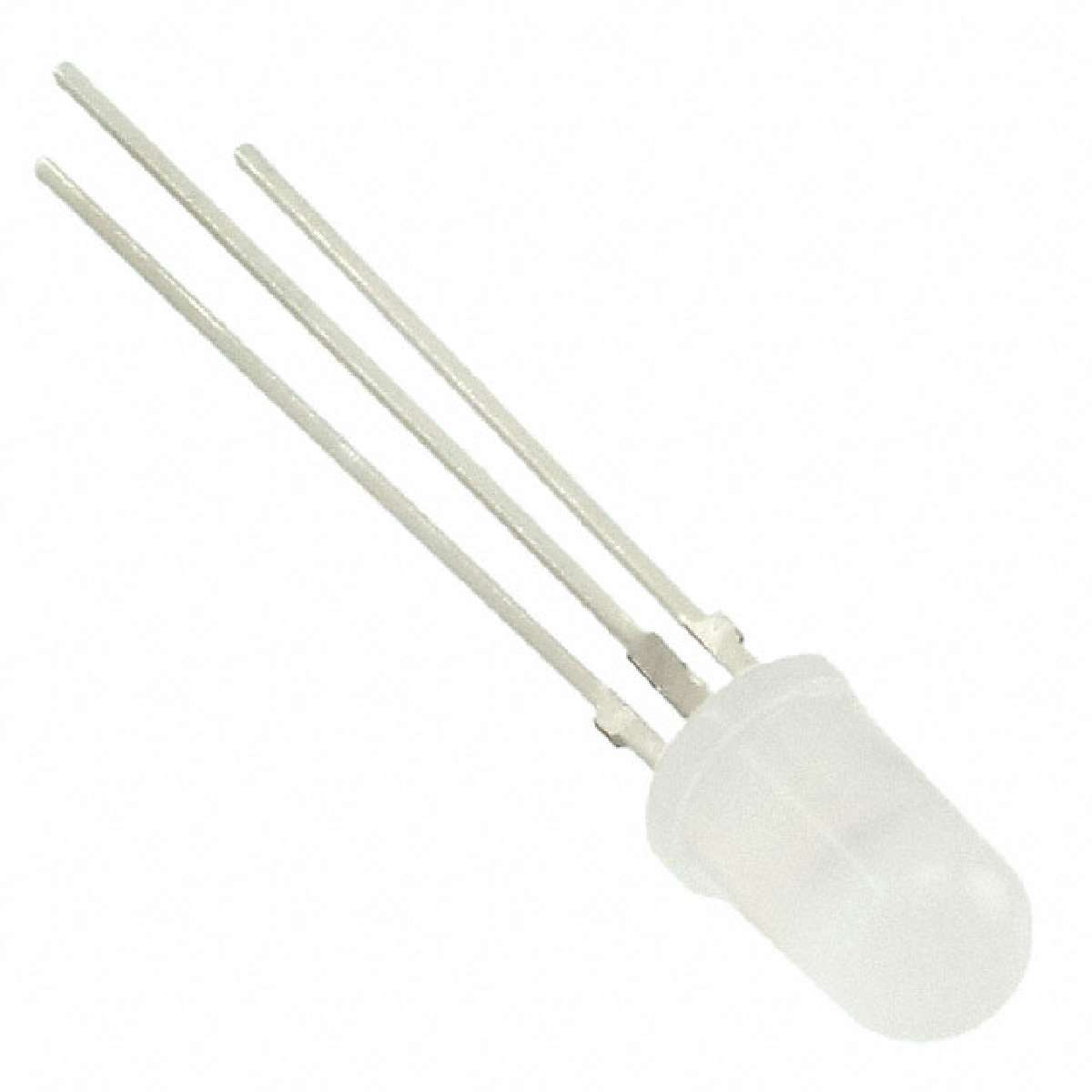

VISHAY TLUV5300 发光二极管, 绿色、红色, 通孔安装, T-1 3/4 5mm, 30 °, 圆形, R 30mA, G 30mA
The is a green/red through-hole Bicolor made of GaAsP on GaP technology. It is ideal as flush mounted panel indicators. It is suitable for DC and pulse operation. It features color mixing possible due to separate anode terminals, even luminance of the emitting surface and ±30° angle of half intensity.
- .
- Wide viewing angle
- .
- Common cathode
- .
- Color mixing possible due to separate anode terminals
额定功率 150 mW
针脚数 3
正向电压 2 V

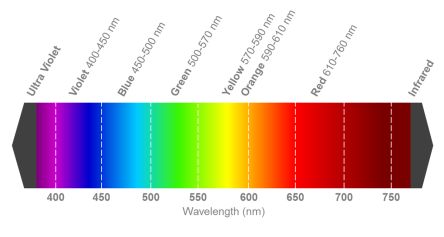

波长 625nm Red, 575nm Green
发光强度 1 mcd
视角 30°
透镜样式 Diffused
峰值波长 565nm Green,630nm Red
耗散功率 150 mW
测试电流 10 mA
正向电流 30 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 150 mW
安装方式 Through Hole
引脚数 3
封装 T-1-3
长度 5.75 mm
宽度 5.75 mm
高度 8.6 mm
直径 5.00 mm
脚长度 24.0 mm
封装 T-1-3
颜色 Green, Red
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Bulk
制造应用 发光二极管照明, LED Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
