2.54mm 方针
Connector Header Through Hole 14 position 0.100" 2.54mm
立创商城:
2.54mm 方针
得捷:
CONN HEADER VERT 14POS 2.54MM
艾睿:

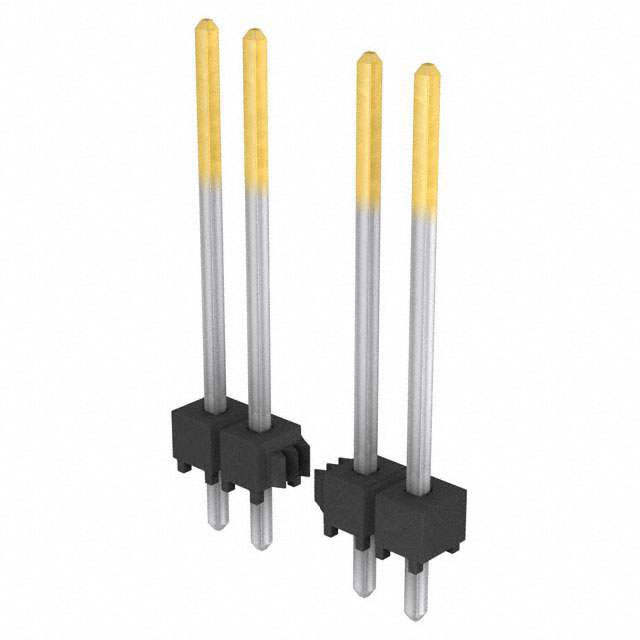

Mounting this unshrouded TSW-114-17-S-S header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 35.56 mm long, 18.28 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. TSW-114-17-S-S is housed in black polyester.
Chip1Stop:
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Bulk
触点数 14
极性 Male
触点电镀 Gold
排数 1
针脚数 14
额定电流Max 6.3A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 550 VAC
安装方式 Through Hole
封装 -
引脚间距 2.54 mm
长度 35.56 mm
宽度 2.54 mm
高度 18.28 mm
封装 -
引脚间距 2.54 mm
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TSW-114-17-S-S Samtec 申泰电子 | 当前型号 | 当前型号 |
TSW-114-17-L-S 申泰电子 | 完全替代 | TSW-114-17-S-S和TSW-114-17-L-S的区别 |
TSW-114-17-G-S 申泰电子 | 完全替代 | TSW-114-17-S-S和TSW-114-17-G-S的区别 |
TSW-114-17-F-S 申泰电子 | 完全替代 | TSW-114-17-S-S和TSW-114-17-F-S的区别 |
