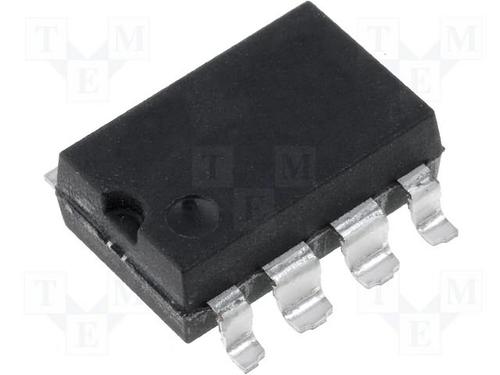

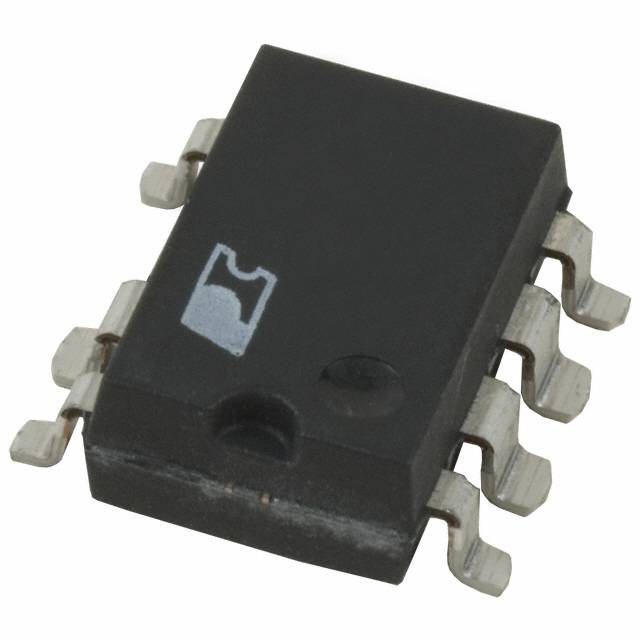

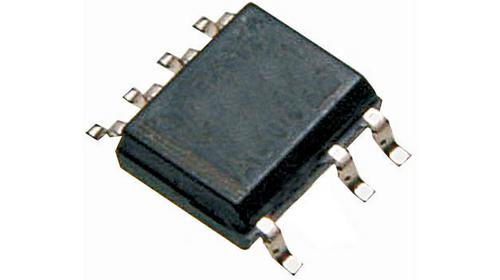

POWER INTEGRATIONS TNY264GN 交流-直流离线式开关, 集成功率MOSFET, 85-265 VAC输入, 132 KHz, SOIC-8
The is a TinySwitch-II, EcoSmart, enhanced energy efficient low power off line switcher in 8 pin SMD package. This device integrates 700V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start up and operating power are derived directly from voltage on DRAIN pin by eliminating need for bias winding and associated circuitry. In addition, the TinySwitch-II device incorporates auto restart, line undervoltage sense and frequency jittering. An innovative design minimizes audio frequency components in simple ON/OFF control scheme to practically eliminate audible noise with standard taped/varnished transformer construction. The fully integrated auto restart circuit safely limits output power during fault conditions such as output short circuit or open loop. The TNY264GN meets CEC, Energy Star and EU requirements.
频率 132 kHz
电源电压DC 374V max
额定功率 9 W
输出接口数 1
输出电压 700 V
输出电流 400 mA
击穿电压 700 V
供电电流 225 µA
针脚数 8
输出功率 6 W
开关频率 132 kHz
占空比 65 %
输入电压AC Max 265 v
输入电压AC Min 85 v
最大占空比 68 %
工作温度Max 150 ℃
工作温度Min -40 ℃
输入电压 85.265 V
安装方式 Surface Mount
引脚数 8
封装 SMD-8
封装 SMD-8
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, 便携式器材, Portable Devices, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TNY264GN Power Integrations 帕沃英蒂格盛 | 当前型号 | 当前型号 |
TNY264GN-TL 帕沃英蒂格盛 | 完全替代 | TNY264GN和TNY264GN-TL的区别 |
TNY264G 帕沃英蒂格盛 | 完全替代 | TNY264GN和TNY264G的区别 |
TNY264G-TL 帕沃英蒂格盛 | 完全替代 | TNY264GN和TNY264G-TL的区别 |
