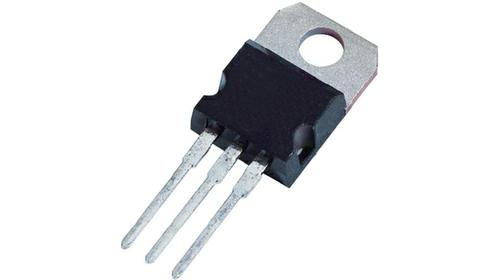

POWER INTEGRATIONS TOP224YN 开关控制器, PWM, 36V电源, 100 kHz, 700V/150mA输出, TO-220-3
The is a second generation, TOPSwitch-II three terminal off line PWM switch in 3 pin TO-220 package. It is a lowest cost and lowest component count switcher solution. Many significant circuit enhancements that reduce sensitivity to board layout and line transients make the design easier. TOPSwitch-II family is more cost effective and provides several enhancements over first generation TOPSwitch family. It incorporates all functions necessary for switched mode control system into three terminal monolithic IC. The TOP224YN has built-in auto restart and current limiting features. It works with primary or opto feedback. The circuit simplicity and design tools reduce time to market. This PWM switch implements flyback, forward, boost or buck topologies. It integrates the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip.
Do not plug this device into a hot IC socket during test. External CONTROL pin capacitance may be charged to excessive voltage and cause device damage.
频率 100 kHz
电源电压DC 36.0V max
额定功率 75 W
输出接口数 1
输入电压DC 265 V
输出电压 700 V
输出电流 150 mA
击穿电压 700 V
供电电流 1.2 mA
针脚数 3
调节输出数 1
输出功率 45 W
开关频率 100 kHz
占空比 67 %
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Min 0.15 A
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压Max 36 V
输入电压 265 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 -40℃ ~ 150℃
产品生命周期 Not For New Designs
包装方式 Tube
制造应用 Portable Devices, Consumer Electronics, Portable Devices, Audio, Power Man, Multimedia, 便携式器材, 电源管理, Power Management, 多媒体, 消费电子产品, Consumer Electronics, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TOP224YN Power Integrations 帕沃英蒂格盛 | 当前型号 | 当前型号 |
TOP221YN 帕沃英蒂格盛 | 类似代替 | TOP224YN和TOP221YN的区别 |
TOP244YN 帕沃英蒂格盛 | 功能相似 | TOP224YN和TOP244YN的区别 |
KA5M0380RTU 飞兆/仙童 | 功能相似 | TOP224YN和KA5M0380RTU的区别 |
