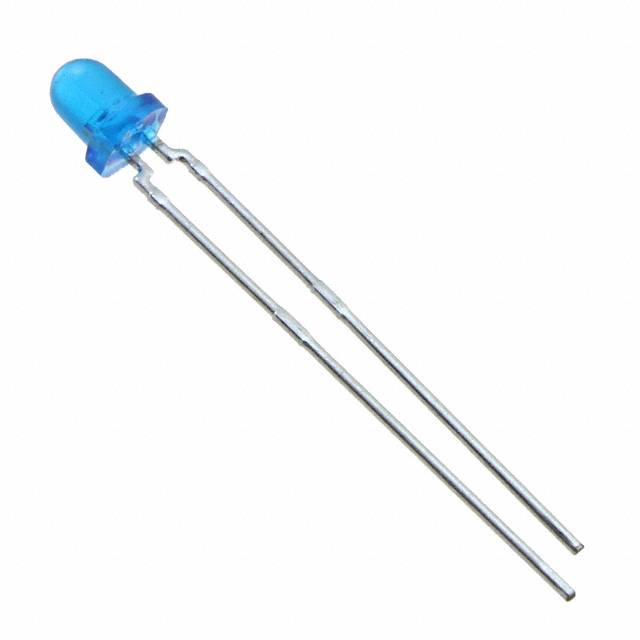

VISHAY TSUS4300 红外发射器, 16 °, T-1 3mm, 100 mA, 1.3 V, 800 ns, 800 ns
The from Vishay is a radial leaded GaAs infrared emitting diode. This devices is suitable for high pulse current operation and has good spectral matching with Si photodetectors, TSUS4300 used for infrared remote control and free air transmission systems with low forward voltage and small package requirements, emitter in transmissive sensors and emitter in reflective sensors.
- .
- Standard diode case style of T-1 3mm
- .
- Angle of half intensity is ±16°
- .
- High reliability
- .
- Peak wavelength of 950nm
- .
- Forward current If of 100mA
- .
- Forward voltage of 1.3V at IF= 100mA
- .
- Power dissipation of 170mW
- .
- Rise time of 800ns
- .
- Fall time of 800ns
- .
- Operating temperature range of -40°C to 85°C
额定电压DC 1.30 V
工作电压 1.3V ~ 1.7V
额定功率 170 mW
上升/下降时间 0.8 µs
针脚数 2
正向电压 1.3 V
波长 950 nm
视角 16°
峰值波长 950 nm
耗散功率 170 mW
上升时间 800 ns
测试电流 100 mA
正向电流 100 mA
正向电压Max 1.3 V
正向电流Max 100 mA
下降时间 800 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 170 mW
安装方式 Through Hole
引脚数 2
封装 T-1
长度 3.2 mm
宽度 3.2 mm
高度 4.5 mm
封装 T-1
颜色 Infrared
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
