TVB1440EVM概述
: 4Channel TV Re-driver with Equalization Evaluation Module
The- .

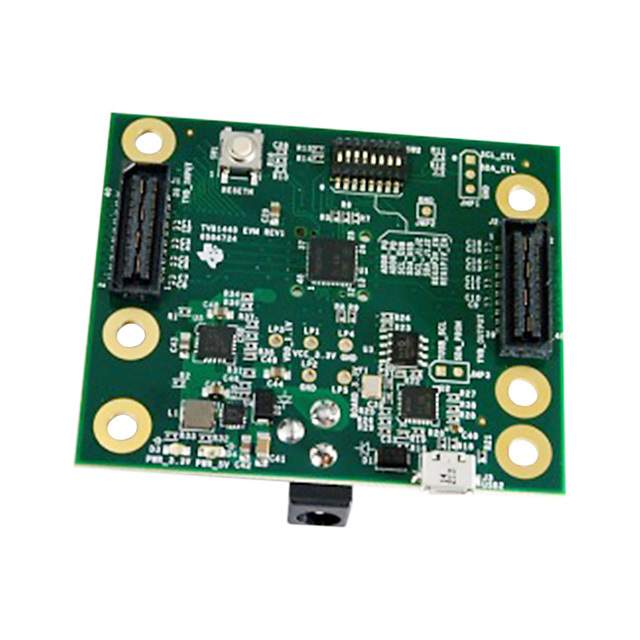

- * ** is a PCB created to help customers evaluate the TVB1440. The TVB1440 is a four-channel re-driver signal conditioner for TV applications, allowing signal integrity between TV chipset and a TCON. It has selectable control for receive equalization to compensate for large trace or cable loss at its input resulting in a improved eye at the TVB1440’s output. Each of the TVB1440 transmitters has independent control for voltage swing and pre-emphasis.
This EVM can also be used as a hardware reference design for implementation of the TVB1440 in the 48-pin VQFN RGZ package.
