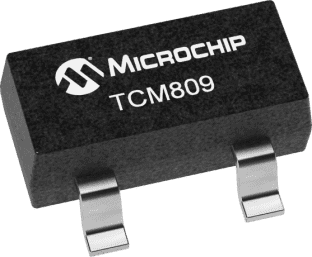

MICROCHIP TCM809JVNB713 复位监视器, 低电平有效复位, 1.2V-5.5V输入, SOT-23B3
监控器 推挽式/图腾柱 1 通道 SOT-23-3
得捷:
IC SUPERVISOR 1 CHANNEL SOT23-3
立创商城:
TCM809JVNB713
贸泽:
Supervisory Circuits Microprocessor 40V
e络盟:
复位监视器, 低电平有效复位, 1.2V-5.5V输入, SOT-23B3
艾睿:
Use the TCM809JVNB713 microprocessor supervisory circuit from Microchip Technology to protect your circuit in the event of an emergency. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4 V, with a minimum of 3.93 V and a maximum of 4.06 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
Voltage supervisor, 4.00V, PP, Low, SOT23
安富利:
Processor Supervisor 4V 2.5V/3V/3.3V/5V 3-Pin SOT-23B T/R
Chip1Stop:
Processor Supervisor 4V 2.5V/3V/3.3V/5V 3-Pin SOT-23B T/R
Verical:
Processor Supervisor 4V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R
Newark:
# MICROCHIP TCM809JVNB713 Microcontroller, 1.2V-5.5V Supply, 4V Threshold, 320ms Delay, Active-Low, SOT-23B-3
Online Components:
Processor Supervisor 4V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R
DeviceMart:
IC RESET MONITOR 4.0V SOT23B-3
Win Source:
Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3
电源电压DC 1.00V min
输出电流 20 mA
供电电流 12.0 µA
针脚数 3
耗散功率 320 mW
静态电流 12.0 µA
阈值电压 4 V
复位电压Min 3.93 V
复位电压Max 4.06 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.05 mm
宽度 1.4 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Computers & Computer Peripherals, Automotive, Portable Devices, 计算机和计算机周边, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TCM809JVNB713 Microchip 微芯 | 当前型号 | 当前型号 |
CAT809STBI-GT3 安森美 | 功能相似 | TCM809JVNB713和CAT809STBI-GT3的区别 |
CAT809RTBI-GT3 安森美 | 功能相似 | TCM809JVNB713和CAT809RTBI-GT3的区别 |
CAT809TTBI-GT3 安森美 | 功能相似 | TCM809JVNB713和CAT809TTBI-GT3的区别 |
