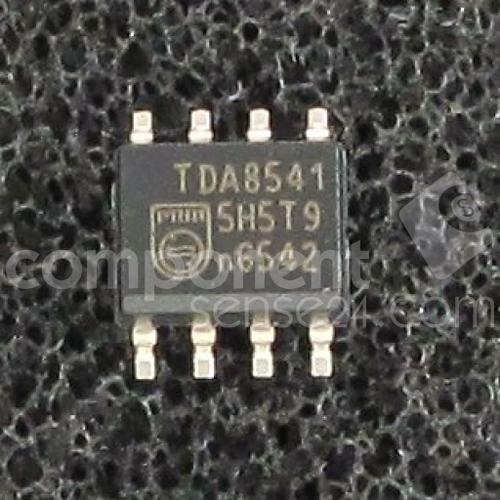

TDA8541T/N1

NXP  TDA8541T/N1  音频功率放大器, AB, 1通道, 1.2 W, 2.2V 至 18V, SOIC, 8 引脚

The is a 1W BTL Audio Power Amplifier for an output power of 1W with an 8R load at a 5V supply. The circuit contains a BTL amplifier with a complementary PNP-NPN output stage and standby/mute logic.

.

Flexibility in use

.

Few external components

.

Low saturation voltage of output stage

.

Gain can be fixed with external resistors

.

Standby mode controlled by CMOS compatible levels

.

Low standby current

.

No switch-ON/switch-OFF plops

.

High supply voltage ripple rejection

.

Protected against electrostatic discharge
