TY3F

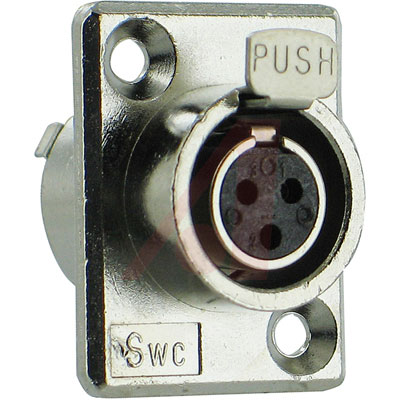

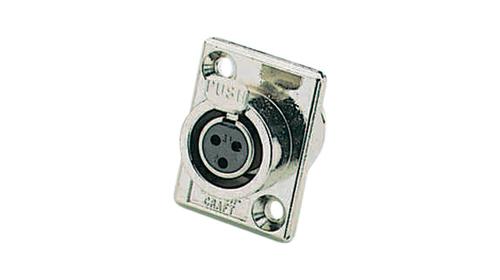

SWITCHCRAFT  TY3F  音频连接器, XLR, 迷你XLR, 插座, 3 触点, 面板安装, 金属主体, 镀银触芯, TY Series Tini Q-G

3 针位圆形 插头，母插口 焊杯

欧时:
Switchcraft TY系列 3路 直向 面板安装 插座, 5A

得捷:
CONN PLUG FMALE MINI XLR 3P SLDR

e络盟:
XLR连接器, 迷你XLR, 3 触点, 插座, 面板安装, 镀银触芯, 金属主体, TY Series Tini Q-G

艾睿:
Create a connection with your sound and video using this xlr connector TY3F audio and video connector from Switchcraft. This F connector&s;s 3 contacts that are made out of copper alloy and plated with silver. It has a straight body orientation. It has a maximum voltage rating of 125 VAC. This connector has a single port. It has a female type gender. This device has a maximum current rating of 5 A. TY3F is housed in copper alloy. This part has a minimum operating temperature of -55 °C and a maximum of 85 °C. Its 3 terminals use the solder termination method. This product is 18.79 mm long, 24.38 mm tall and 23.69 mm deep.

Allied Electronics:
DIN Plug; Receptacle; 3; Female; 125; 5A; 0.010 Ohms Max.; Copper Alloy

安富利:
Conn Mini XLR Connector F 3 POS Solder ST Flange Mount 3 Terminal 1 Port

Chip1Stop:
Conn XLR Connector F 3 POS Solder ST Panel Mount 3 Terminal 1 Port

Verical:
Conn XLR Connector F 3 POS Solder ST Panel Mount 3 Terminal 1 Port

Newark:
# SWITCHCRAFT  TY3F  XLR Audio Connector, 3 Contacts, Jack, Panel Mount, Silver Plated Contacts, Metal Body

MASTER:
Conn XLR Connector F 3 POS Solder ST Panel Mount 3 Terminal 1 Port

Online Components:
Conn XLR Connector F 3 POS Solder ST Panel Mount 3 Terminal 1 Port

Electro Sonic:
Conn XLR Connector F 3 POS Solder ST Panel Mount 3 Terminal 1 Port
