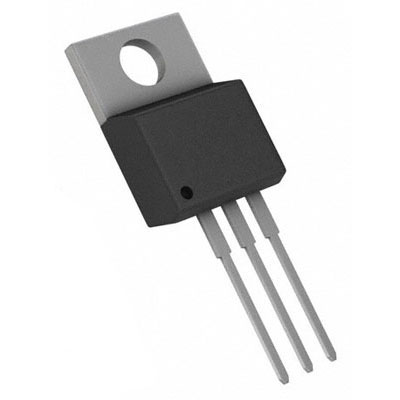

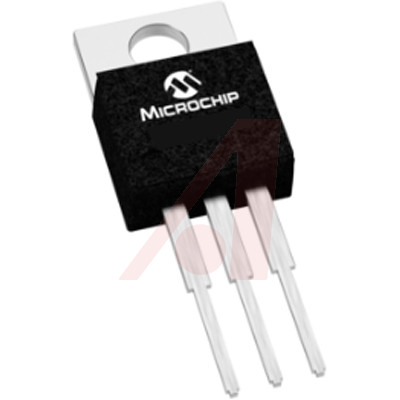

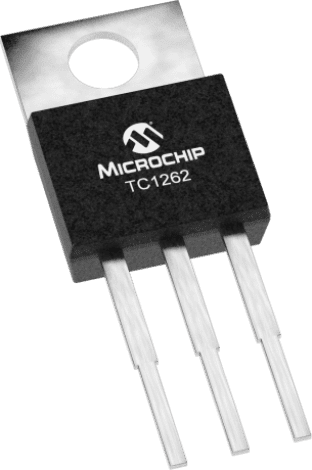

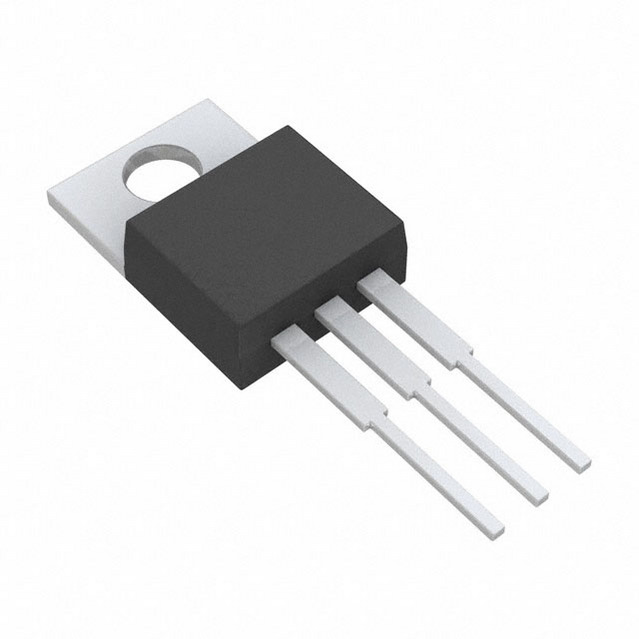

MICROCHIP TC1262-3.3VAB 固定电压稳压器, LDO, 2.7V至6V, 350mV压差, 3.3V输出, 500mA输出, TO-220-3
The is a fixed output high accuracy CMOS Low Dropout Regulator LDO for battery-operated systems. The TC1262 is CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80µA at full load 20 to 60 times lower than in bipolar regulators. TC1262 key features include ultra low noise, very low dropout voltage typically 350mV at full load and fast response to step changes in load. The TC1262 incorporates both over-temperature and over-current protection. The TC1262 is stable with an output capacitor of only 1µF and has a maximum output current of 500mA.
- .
- Very low dropout voltage
- .
- High output voltage accuracy
输出接口数 1
输入电压DC 2.70V min
输出电压 3.3 V
输出电流 500 mA
供电电流 130 μA
针脚数 3
耗散功率 508 mW
静态电流 0.08 mA
输出电容类型 Tantalum
跌落电压 350 mV
输入电压Max 6 V
输入电压Min 2.7 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 ≤6 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.41 mm
封装 TO-220-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 车用, 医用, Sensing & Instrumentation, 电源管理, Computers & Computer Peripherals, Power Management, 传感与仪器, Automotive, 消费电子产品, Consumer Electronics, Medical, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8542390001
