T89C5115-SISIM

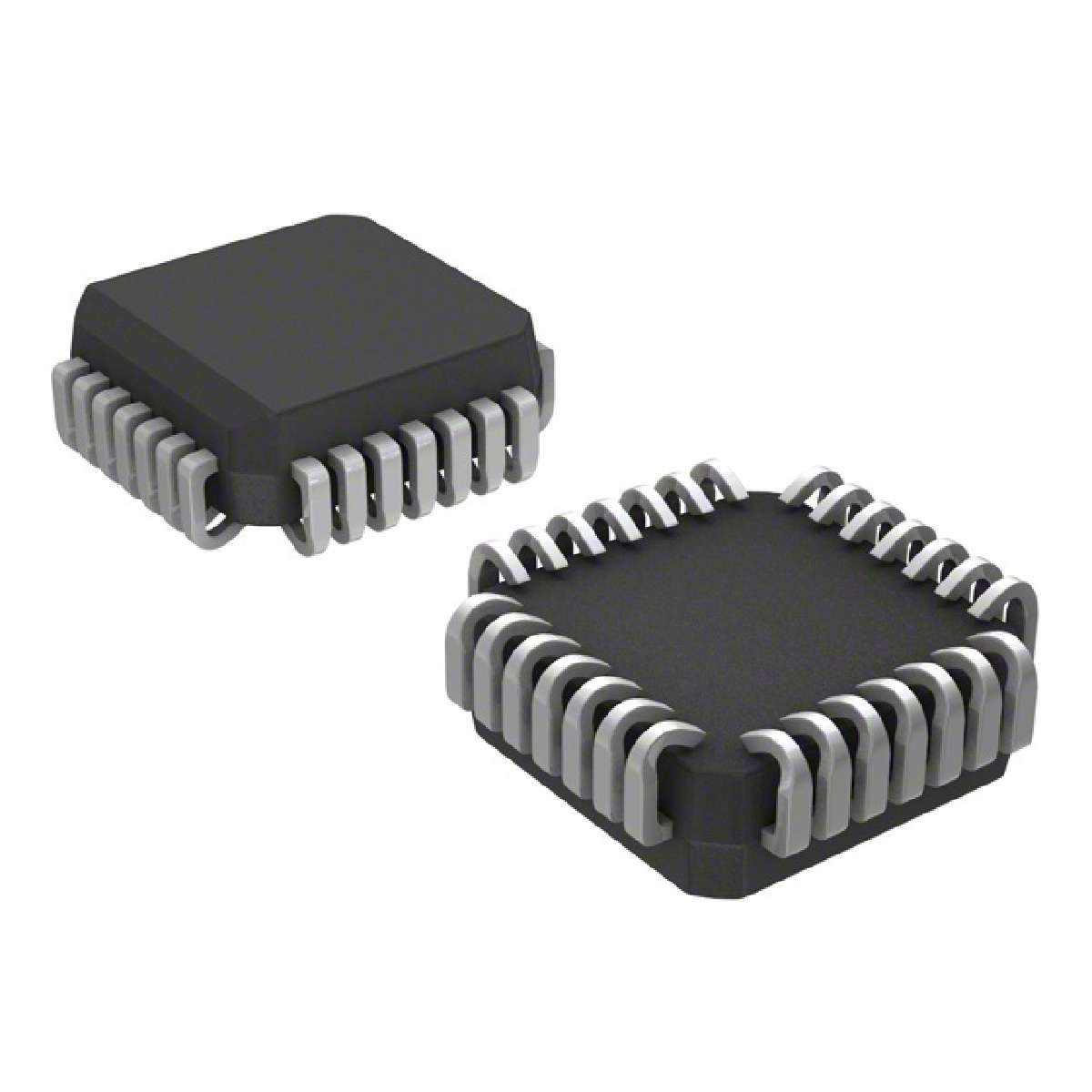

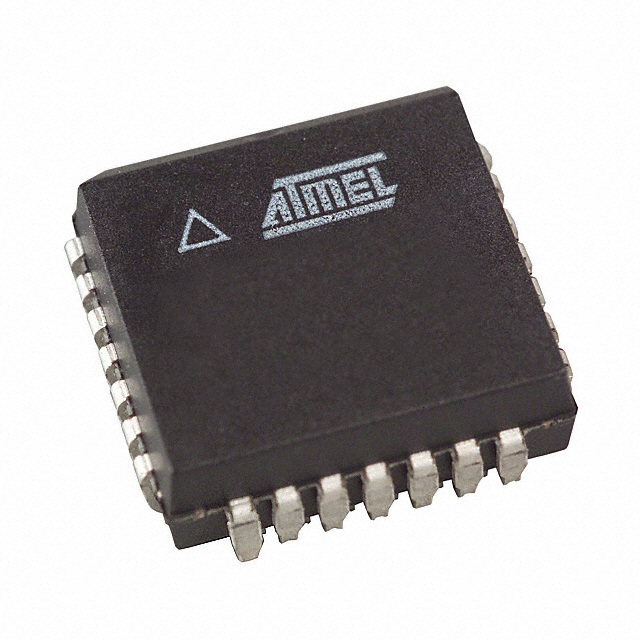

IC MCU 8Bit 16KB FLASH 28PLCC

Description

The T89C5115 is a high performance Flash version ofthe 80C51 single chip 8-bit microcontrollers. It contains a 16-KB Flash memory blockfor program and data.

The 16-KB Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage is internally gener ated from the standard VCC pin.

Features

• 80C51 Core Architecture

• 256 Bytes of On-chip RAM

• 256 Bytes of On-chip XRAM

• 16K Bytes of On-chip Flash Memory

– Data Retention: 10 Years at 85°C

– Erase/Write Cycle: 100K

• 2K Bytes of On-chip Flash for Bootloader

• 2K Bytes of On-chip EEPROM

– Erase/Write Cycle: 100K

• 14-sources 4-level Interrupts

• Three 16-bit Timers/Counters

• Full Duplex UART Compatible 80C51

• Maximum Crystal Frequency 40 MHz. In X2 Mode, 20 MHz CPU Core, 40 MHz

• Three or Four Ports: 16 or 20 Digital I/O Lines

• Two-channel 16-bit PCA

– PWM 8-bit

– High-speed Output

– Timer and Edge Capture

• Double Data Pointer

• 21-bit Watchdog Timer 7 Programmable bits

• A 10-bit Resolution Analog-to-Digital Converter ADC with 8 Multiplexed Inputs

• Power-saving Modes

– Idle Mode

– Power-down Mode

• Power Supply: 3 Volts to 5.5 Volts

• Temperature Range: Industrial -40°to +85°C

• Packages: SOIC28, SOIC24, PLCC28, VQFP32
