TLV5734PAGG4

IC ADC 8Bit 30MSPS 3CH 64-TQFP

description

The TLV5734 is a triple 8-bit converter with high-precision clamp for digitizing video signals in RGB or YUV color spaces. The device supports pixel rates up to 30 MSPS. The TLV5734 is powered from a single 3.3-V supply. Separate clamping levels are provided for the RGB and YUV analog component video inputs. The clamp timing window is provided by an external pulse. The output-data formatter selects from output formats of 4:4:4, 4:1:1, and 4:2:2. For RGB applications, the 4:4:4 output format with clamp can be used. The TLV5734 is characterized for operation from −20°C to 75°C.

features

• 3-Channel CMOS ADC

• Single 3.3-V Supply

• 8-Bit 30-MSPS A/D Conversion

• Very Low Power: <300 mW Typical

• Differential Linearity Error: < ±0.5 LSB Max

• Integral Linearity Error: < ±0.75 LSB Max

• Analog Input Voltage Range: 1 Vpp Max

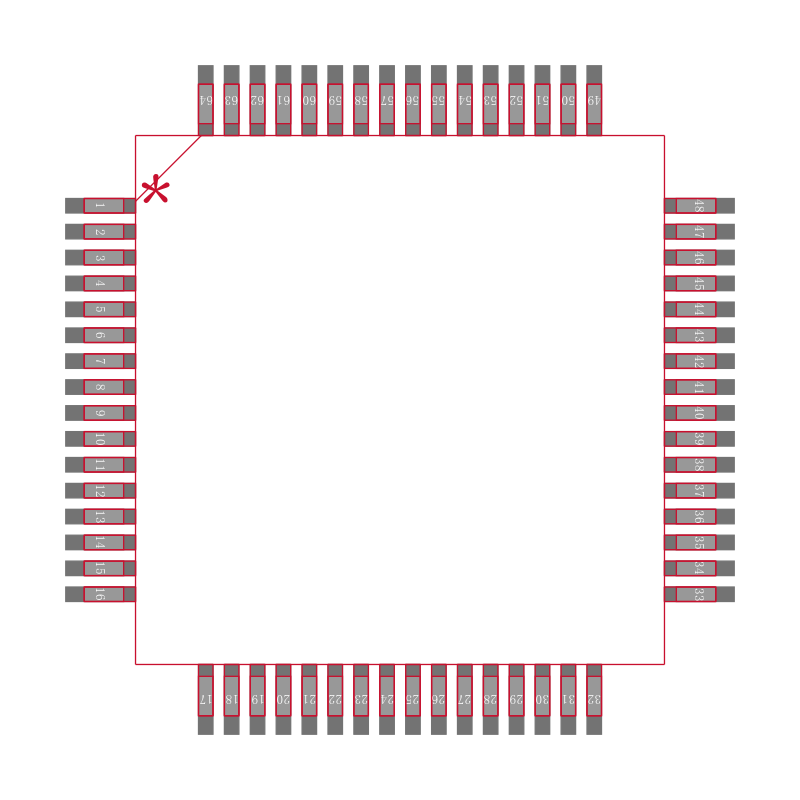

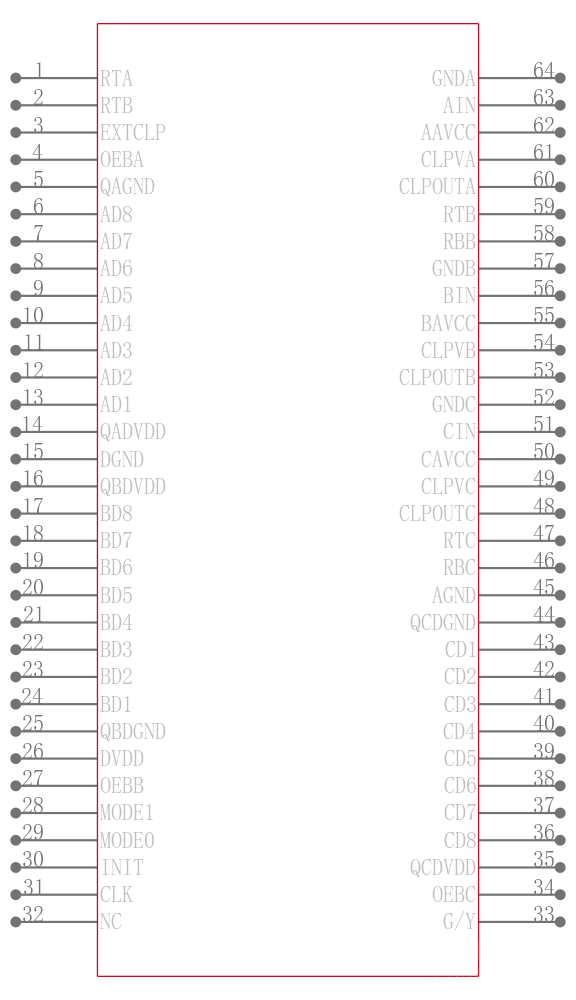

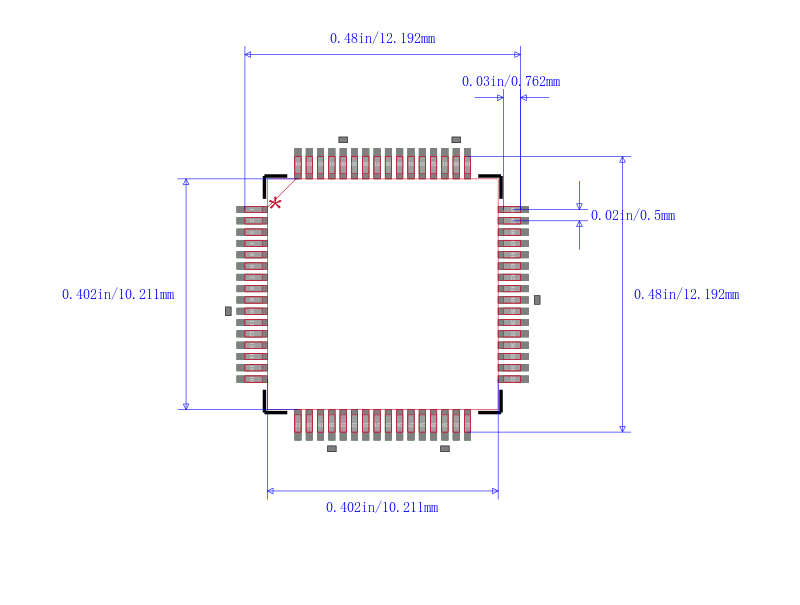

• 64-Pin Thin QFP Package

• Analog Input Bandwidth: >130 MHz

• Selectable Clamping Function for YUV or RGB Applications

• High-Precision Clamp: ±0.5 LSB

• Selectable Output Data Format for 4:4:4 RGB, YUV, 4:2:2 and 4:1:1 YUV Format

• NTSC or PAL Compliant

applications

• Digital TV

• Digital Video

• Multimedia

• Video Capture

• Video Editing

• Security Applications
