10位模拟数字转换器具有并行输出 10-BIT ANALOG-TO-DIGITAL CONVERTERS WITH PARALLEL OUTPUTS
description
The TLC1550x and TLC1551 are data acquisition analog-to-digital converters ADCs using a 10-bit, switched-capacitor, successive-approximation network. A high-speed, 3-state parallel port directly interfaces to a digital signal processor DSP or microprocessor µP system data bus. D0 through D9 are the digital output terminals with D0 being the least significant bit LSB. Separate power terminals for the analog and digital portions minimize noise pickup in the supply leads.
Power Dissipation. . . 40 mW Max
Advanced LinEPIC Single-Poly Process Provides Close Capacitor Matching for Better Accuracy
Fast Parallel Processing for DSP and µP Interface
Either External or Internal Clock Can Be Used
Conversion Time...6 µs
Total Unadjusted Error . . . ±1 LSB Max
CMOS Technology
供电电流 2.00 mA
电路数 1
位数 10
耗散功率 40 mW
采样率 164 ksps
功耗 10.0 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 40 mW
输入电压 5 V
安装方式 Surface Mount
引脚数 28

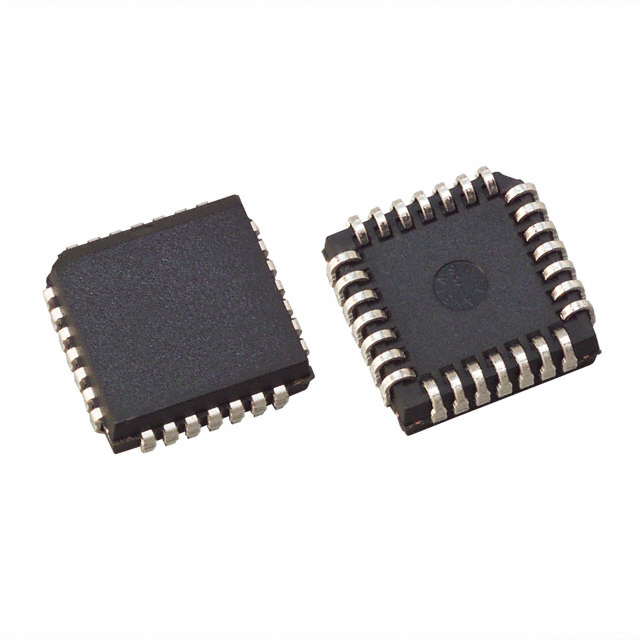

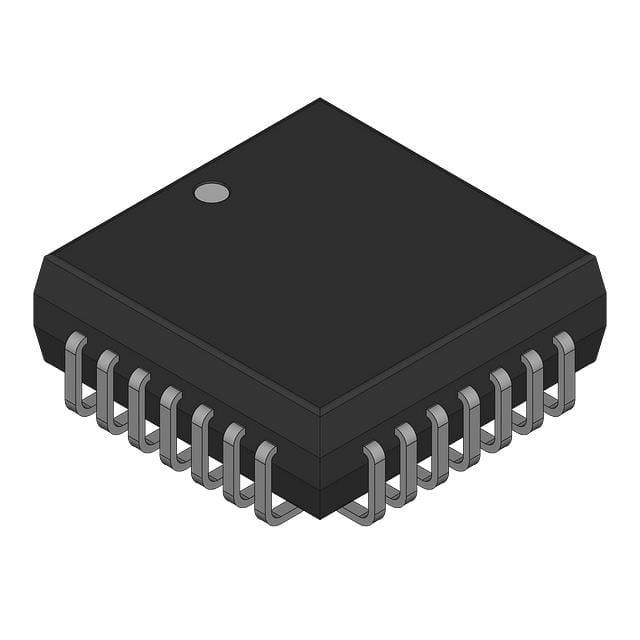

封装 PLCC-28
长度 11.51 mm
宽度 11.51 mm
高度 4.06 mm
封装 PLCC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC1550IFNR TI 德州仪器 | 当前型号 | 当前型号 |
TLC1550IFNG4 德州仪器 | 完全替代 | TLC1550IFNR和TLC1550IFNG4的区别 |
TLC1550IFN 德州仪器 | 类似代替 | TLC1550IFNR和TLC1550IFN的区别 |
