TSW-104-08-S-D-RA

Conn Unshrouded Header HDR 8POS 2.54mm Solder RA Thru-Hole

针座 通孔，直角 8 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER R/A 8POS 2.54MM

艾睿:

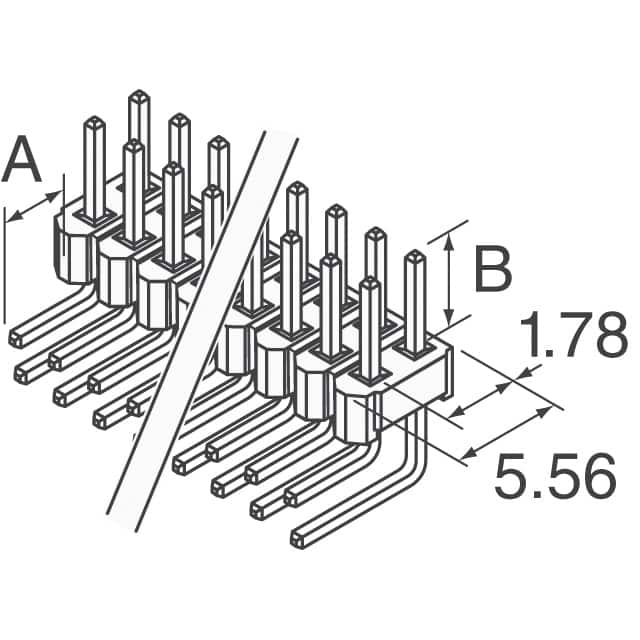

Protect your printed circuit boards from accidental damages with Samtec&s;s unshrouded TSW-104-08-S-D-RA header connector. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 450 VAC. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10.16 mm long, 5.56 mm tall and 12.44 mm deep. It uses the solder termination method. TSW-104-08-S-D-RA is housed in black polyester. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Bulk

Verical:
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk

Newark:
# SAMTEC  TSW-104-08-S-D-RA  .025 Sq. Terminal Strips
