Cap Trimmer Ceramic 2/6pF 100V NPO±200ppm/°C 0% to 50% Top Adj 85℃ T/R

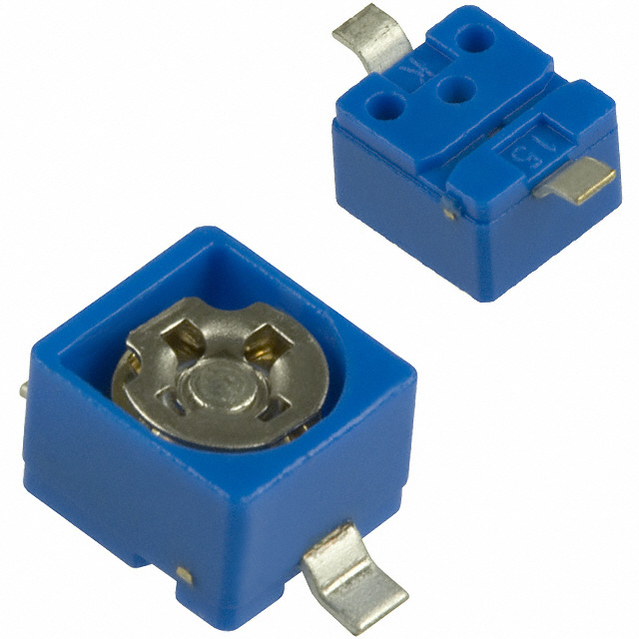

This trimmer capacitor from Murata is a variable capacitor and can be used to calibrate equipment. It can withstand a voltage of 100 VDC. This trimmer capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 4 mm long, 3 mm tall and 4.5 mm deep. This device has a minimum quality factor frequency of 500@1MHz.
额定电压DC 100 V
测试频率 1 MHz
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 100 V
安装方式 Surface Mount
封装 0.177" L x 0.158" W x 0.118" H 4.50mm x 4.00mm x 3.00mm
长度 4.5 mm
宽度 4 mm
高度 3 mm
封装 0.177" L x 0.158" W x 0.118" H 4.50mm x 4.00mm x 3.00mm
颜色 Blue
材质 Ceramic
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TZB4Z060BA10R00 muRata 村田 | 当前型号 | 当前型号 |
TZB4Z100AA10R00 村田 | 完全替代 | TZB4Z060BA10R00和TZB4Z100AA10R00的区别 |
TZB4Z100BB10R00 村田 | 完全替代 | TZB4Z060BA10R00和TZB4Z100BB10R00的区别 |
TZB4Z060AA10R00 村田 | 完全替代 | TZB4Z060BA10R00和TZB4Z060AA10R00的区别 |
