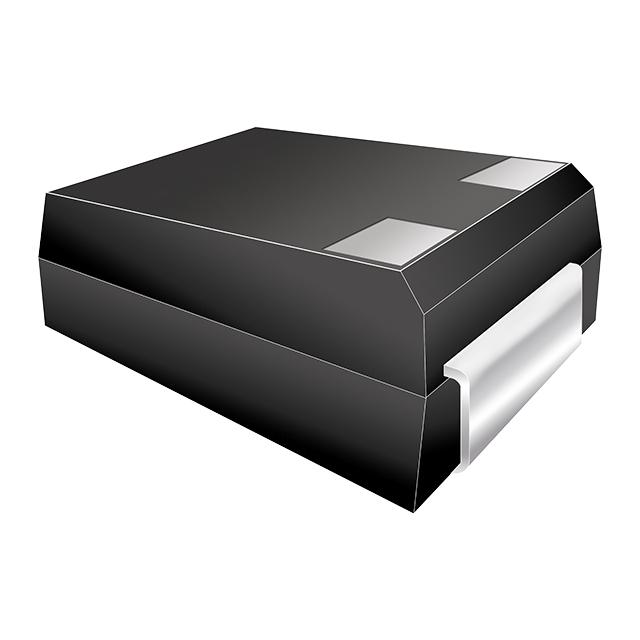

7343 1mF ±20% 2.5V
Because of its high permittivity dielectric layer, this polymer electrolyte from Kemet is best-suited to pass low-frequency signals into various small products. It can withstand a voltage of 2.5 VDC. It has 2 terminals. Its capacitance value is 1000uF. Its leakage current is 250 μA. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 7.3 mm long, 4Max mm tall and 4.3 mm deep.
额定电压DC 2.50 V
电容 1000 µF
等效串联电阻ESR 15mΩ @100kHz
容差 ±20 %
产品系列 T520
纹波电流 4000 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 2.5 V
安装方式 Surface Mount
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 3.8 mm
封装 7343
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命（小时） 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T520Y108M2R5ATE015 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T520Y108M2R5AHE015 基美 | 功能相似 | T520Y108M2R5ATE015和T520Y108M2R5AHE015的区别 |
