T494X156K050AT

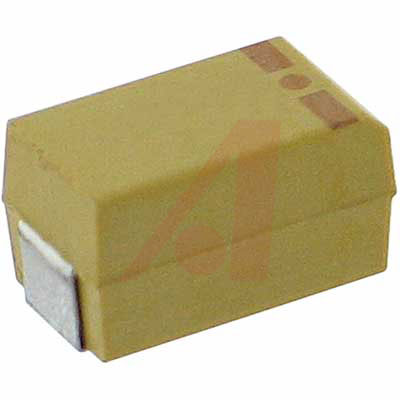

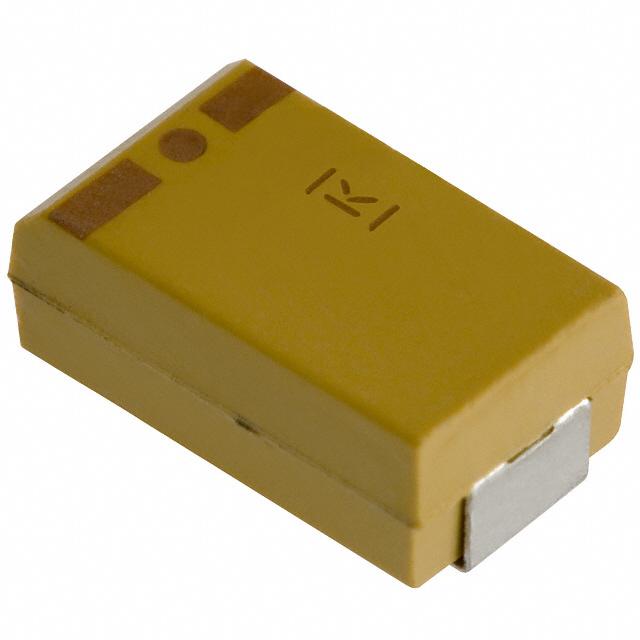

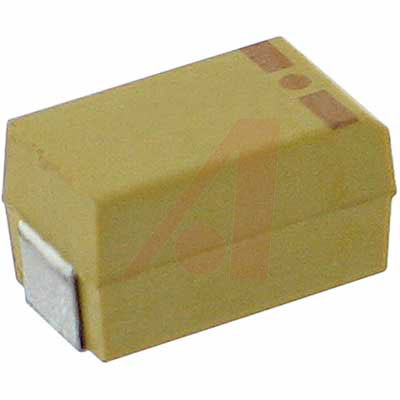

KEMET  T494X156K050AT  钽电容, 15uF 10%容差 50V

The Kemet T494 is designed for the COTS Commercial Off-the-Shelf requirements of military and aerospace applications. This series is a surface mount product offering various lead-frame plating options, Weibull grading options, and surge current testing options. Standard, low, and ultra-low ESR options are available. All lots of this series are conditioned with MIL-PRF-55365 Group A testing. CECC testing options are available per CECC 30801-005 please order with "CECC" in last four digits of part number. This series is also approved for DSCC Drawing 07016 please see part number list specific to this drawing.

.

*Applications **

* Decoupling and Filtering in Military and Aerospace Applications **Benefits**

* Established Reliability Options

* Symmtrical, Compliant Terminations

* 100% Surge Current Test Available on All Case Sizes

* Operating Temperature Rage of -55° C to +125° C

* Capacitance Values of 0.1 μF to 330 μF

* All Parts Tested Per Group A of MIL-PRF-55365

* Approved for DSCC Drawing 07016 Applications
