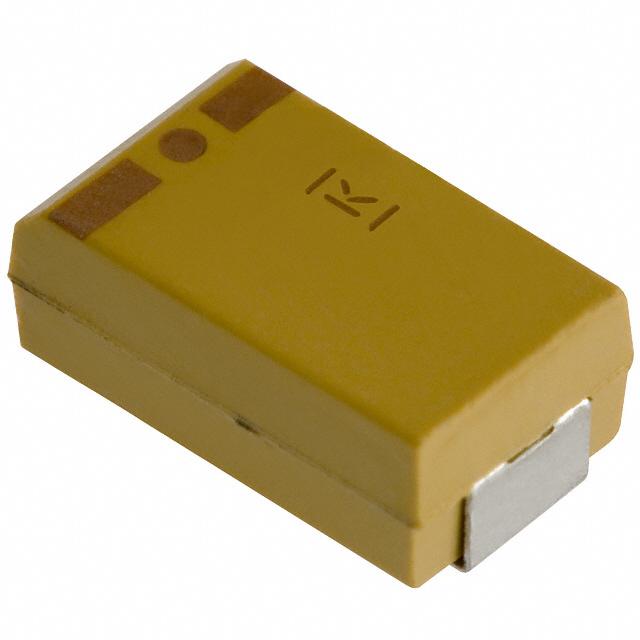

T494D477M006AH

2917 470uF ±20% 6.3V 3.1mm

T494, Tantalum, MnO2 Tantalum, Commercial Grade, 470 uF, 20%, 6.3 VDC, SMD, MnO2, Molded, Low ESR, 150 mOhms, 7343, Height Max = 3.1mm

立创商城:
470uF ±20% 6.3V

得捷:
CAP TANT 470UF 20% 6.3V 2917

艾睿:
Cap Tant Solid 470uF 6.3V D CASE 20% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.15 Ohm 125

安富利:
This T494 Series product meets or exceeds the requirements of EIA standard 535BAAC. This series is classified as MSL Moisture Sensitivity Level 1 under J STD 020: unlimited floor life time at ≤30°C/85% RH. The T494 standard terminations are available in 100% matte tin and provide excellent wetting characteristics and compatibility with today"s surface mount solder systems. Tin/lead Sn/Pb terminations are available upon request for any part number. Gold-plated terminations are also available for use with conductive epoxy attachment processes. Standard packaging of these devices is tape and reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units.
