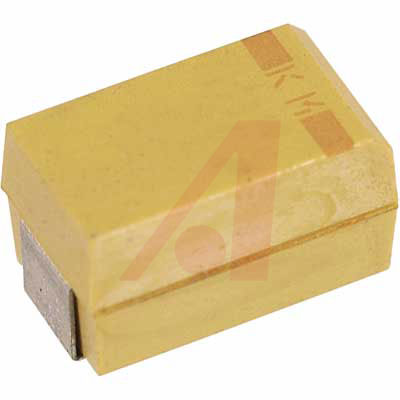

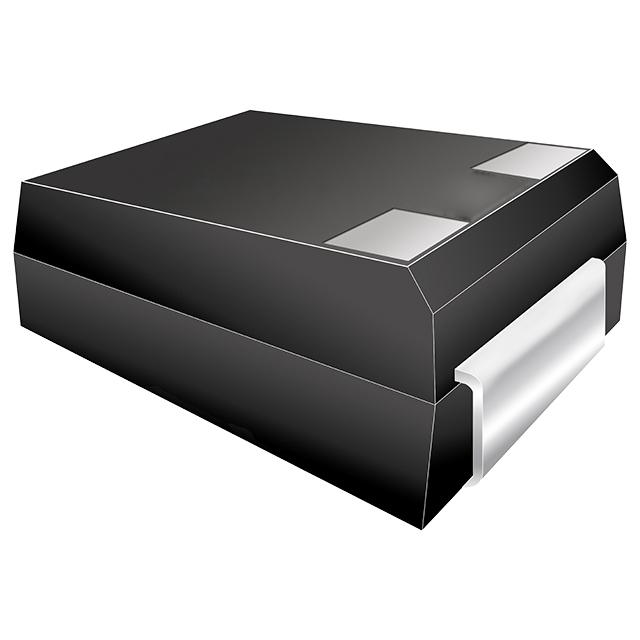

KEMET T530X477M006ATE005 表面贴装钽电容, T530系列, 470 µF, 2917 [7343 公制], 0.005 ohm, 6.3 V
* /b Capacitance Range: 150 - 1500uF
* **Voltage:** 2.5 - 10V
* **Tolerance:** ±20%
* **Case Size:** D,X & Y
* Highest CV in standard EIA Size
* Extremely Low ESR
The T530 Conductive Polymer High Capacitance, Ultra Low ESR is offering a multiple anode tantalum chip capacitor with a polymer material replacing the MnO2 offering non-ignition, self-healing, 128 C performance capability with higher conductivity material than lowers the ESR. With the reduced ESR, the enhanced capacitance retention in higher frequencies results in the lowest total capacitance solution and provides for the most economical solution in high power applications.
额定电压DC 6.30 V
电容 470 µF
等效串联电阻ESR 0.005 Ω
容差 ±20 %
产品系列 T530
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 7343-43
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 4 mm
封装公制 7343-43
封装 7343
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T530X477M006ATE005 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T530X477M006AHE005 基美 | 完全替代 | T530X477M006ATE005和T530X477M006AHE005的区别 |
T530X477M006ASE005 基美 | 完全替代 | T530X477M006ATE005和T530X477M006ASE005的区别 |
