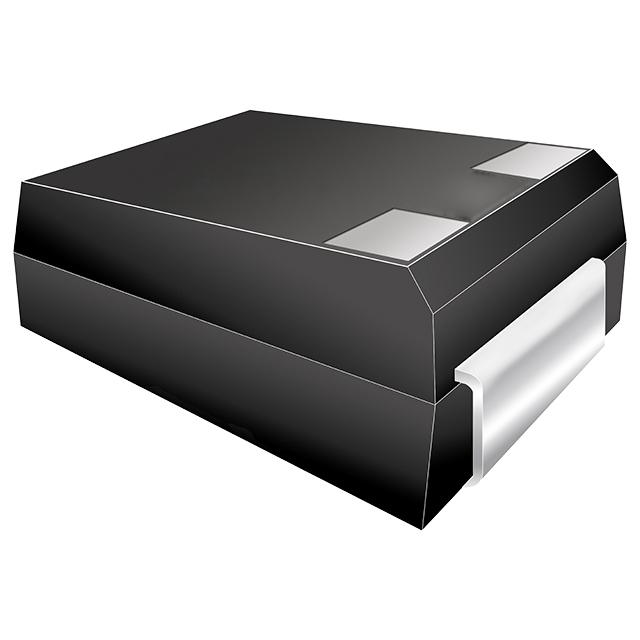

7343 330uF ±20% 10V
Looking to filter out high frequencies? Implement this organic polymer electrolyte manufactured from Kemet into your small device design. It can withstand a voltage of 10 VDC. It has 2 terminals. This product is 7.3 mm long, 4 mm tall and 4.3 mm deep. This polymer electrolyte has an operating temperature range of -55 °C to 125 °C. Its leakage current is 330 μA. Its capacitance value is 330uF.
额定电压DC 10 V
电容 330 µF
等效串联电阻ESR 6 mΩ
容差 ±20 %
产品系列 T530
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 4 mm
封装 7343
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命（小时） 2000h @105℃
RoHS标准 Non-Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T530X337M010AHE006 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T530X337M010ATE006 基美 | 完全替代 | T530X337M010AHE006和T530X337M010ATE006的区别 |
T530X337M010ASE006 基美 | 功能相似 | T530X337M010AHE006和T530X337M010ASE006的区别 |
