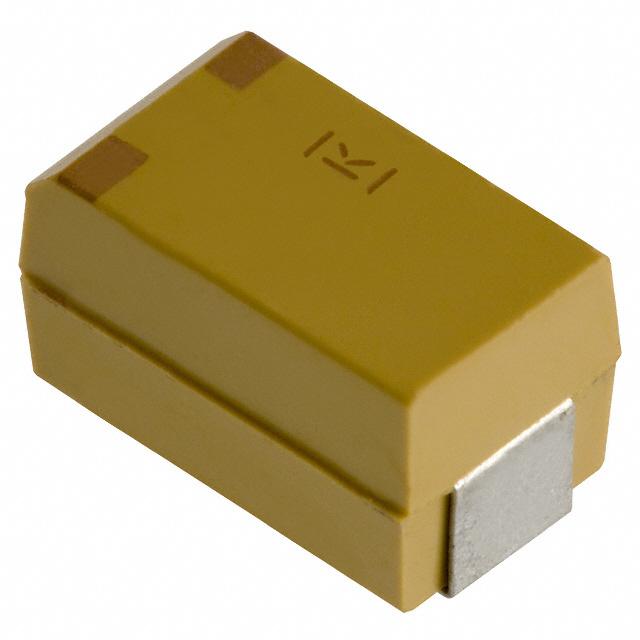

2917 100uF ±10% 20V 4.3mm
This solid tantalum capacitor from Kemet offers higher stability than aluminum capacitors. It can withstand a voltage of 20 VDC. Its leakage current is 20 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 100uF. This product is 7.3 mm long, 4 mm tall and 4.3 mm deep. It has a tolerance of 10%.
得捷:
CAP TANT 100UF 10% 20V 2917
立创商城:
100uF ±10% 20V
贸泽:
Tantalum Capacitors - Solid SMD 20volts 100uF
艾睿:
This T510X107K020AHE035 solid tantalum capacitor from Kemet offers higher stability than aluminum capacitors. It can withstand a voltage of 20 VDC. Its leakage current is 20 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 100uF. This product is 7.3 mm long, 4 mm tall and 4.3 mm deep. It has a tolerance of 10%.
安富利:
CAP 100UF 20VDC 10% 7.3 X 4.3 X 4MM SMD 7343-43
Chip1Stop:
Cap Tant Solid 100uF 20V X CASE 10% 7.3 X 4.3 X 4mm Inward L SMD 7343-43 0.035 Ohm 125C Automotive T/R
Verical:
Cap Tant Solid 100uF 20V X CASE 10% 7.3 X 4.3 X 4mm Inward L SMD 7343-43 0.035 Ohm 125C Automotive T/R
额定电压DC 20 V
电容 100 µF
等效串联电阻ESR 35 mΩ
容差 ±10 %
产品系列 T510
纹波电流 2777 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 20 V
安装方式 Surface Mount
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 4 mm
封装 7343
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000h @85℃
RoHS标准 Non-Compliant
含铅标准 Contains Lead
