TE CONNECTIVITY / POTTER & BRUMFIELD T92S7D12-110 通用继电器, T92系列, 功率, 无锁定, DPST常开, 110 VDC, 40 A
The T92 series 2-pole 30A PCB or panel-mount General Purpose High Power Relay with 40A, 2-form-A NO and 2-form-C CO switching capability. It meets requirements of UL 508 and UL 873 spacing - 8mm through air, 9.5mm over surface and meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-contacts.
- .
- Meets requirements of UL class-F construction
- .
- New screw terminal version
- .
- UL approved for 600VAC switching 1.5HP
- .
- Designed to control compressor loads to 3.5 tons, 110LRA/25.3FLA
额定电流 30 A
输入电压DC 110 V
触点类型 DPST-NO
功耗 1.7 W
触点额定电流 30 A
线圈电压 110 VDC
线圈电流 15.16 mA
线圈功率DC 1.70 W
线圈电阻 7.255 kΩ
线圈电压DC 110 V
开关电流Max 40 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 110 VDC
安装方式 Through Hole

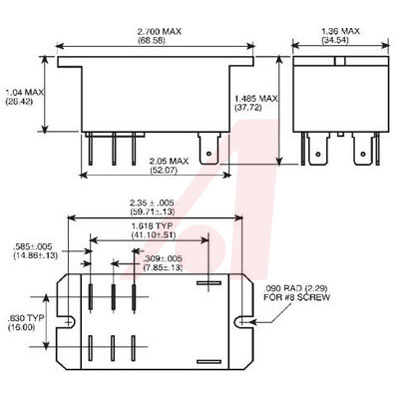

长度 52.3 mm
宽度 34.5 mm
高度 30.73 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Consumer Electronics, Automation & Process Control, Commercial, HVAC, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
REACH SVHC标准 No SVHC
