TCL 024-112

TRACOPOWER  TCL 024-112  交流/直流电源, DIN轨, 工业用, 固定/可调, 85 V, 264 V, 24 W, 12 V, 2 A

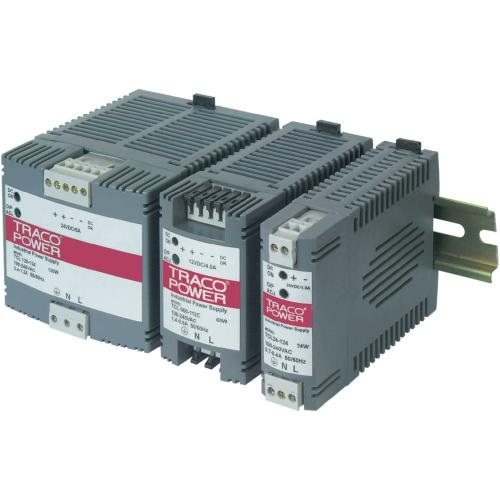

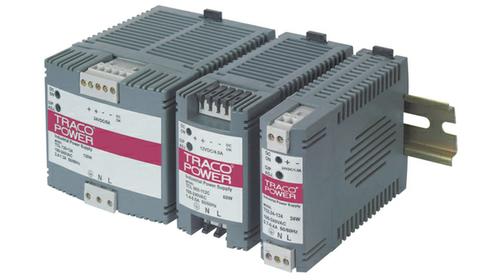

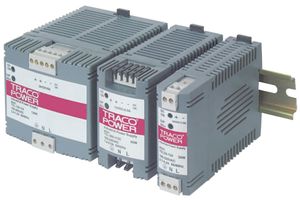

The is a 12V/24W Power Supply, TCL-series is a family of DIN-rail power supply with ultra compact plastic housing, tightly regulated output voltage and high immunity against electrical disturbances on the mains they provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment. Compact size, light weight, easy snap-on mounting on DIN-rails and the choice of two connection terminal versions are other features of these power supplies.

.

Connection by detachable screw terminal block

.

Reliable snap-on mounting on DIN-rails

.

Universal input 85 to 264VAC, 50/60Hz

.

Power OK signal

.

Low ripple and noise

.

Overload and short-circuit protection

.

Parallel operation possible

.

Redundancy module

.

88% Efficiency

.

-10 to 70°C Maximum operating temperature range
