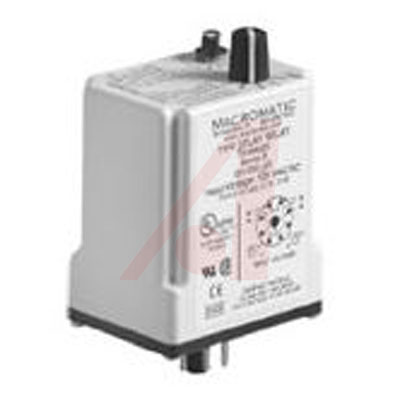

MACROMATIC CONTROLS TR-61328 延时继电器, DPDT, 120分, 24VAC/DC
Macromatic’s TR-6 Series Time Delay Relays has 16 timing ranges 8 on True Off Delay. Selecting a range is easy using a rotary switch no math is requires or DIP switches to set.
* Watchdog
* Programmable
* 0.01 Sec-2 Hour
* Used industry-standard 11 pin octal socket
* Pilot Duty Rating
Specifications
* DPDT 10A @ 240VAC/DC
* Temperature: –28°C to 65°C
* Dimensions: 3.5" D × 1.7" W × 2.4" H
Description of Function:
Upon application of input voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output is energized and the time delay t begins. At the end of the time delay t, the output is de-energized unless the trigger is removed and re-applied prior to time out before time delay t elapses. Continuous cycling of the trigger at a rate faster than the time delay t will cause the output to remain energized indefinitely.
