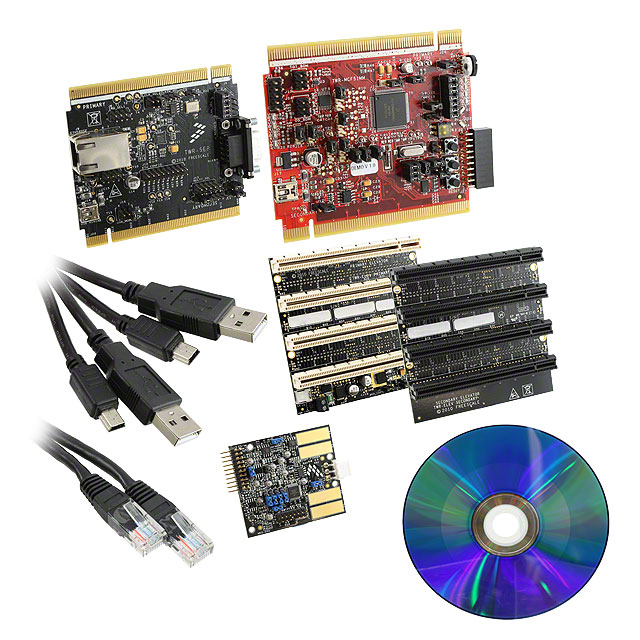

The TWR-MCF51MM-KIT是一个medical 开发 tower 系统套件用于MCF51MM256 Flexis ColdFire 32bit微控制器. The MCF51MM256提供ultra 低功率operation, USB connectivity, graphic显示器 support和unparalleled measurement accuracy, all in a single 32bit微控制器MCU, allowing设计ers to create more fully featured products at a lower cost. The TWR-MCF51MM operates as a standalone debug工具和can also be combined和used as part of the 模块 tower 系统开发平台. The模块 can be powered by the 开源BDM OSBDM circuit via the mini B USB 连接器 when standalone. An onboard, MC9S08JM60 based OSBDM circuit提供a debug 接口to the MCF51MM256. The TWR-MCF51MM features two扩展 card edge 连接器 that 接口to elevator电路板s in a tower 系统, primary和secondary elevator 连接器.
The 是一个medical 开发 tower 系统套件用于MCF51MM256 Flexis ColdFire 32bit微控制器. The MCF51MM256提供ultra 低功率operation, USB connectivity, graphic显示器 support和unparalleled measurement accuracy, all in a single 32bit微控制器MCU, allowing设计ers to create more fully featured products at a lower cost. The TWR-MCF51MM operates as a standalone debug工具和can also be combined和used as part of the 模块 tower 系统开发平台. The模块 can be powered by the 开源BDM OSBDM circuit via the mini B USB 连接器 when standalone. An onboard, MC9S08JM60 based OSBDM circuit提供a debug 接口to the MCF51MM256. The TWR-MCF51MM features two扩展 card edge 连接器 that 接口to elevator电路板s in a tower 系统, primary和secondary elevator 连接器.
- .
- 集成开源BDM调试工具
- .
- 小巧的外形
- .
- 支持外部通讯接口
- .
- 包括功率调节电路 标准化总线
- .
- 两个80引脚外部连接器支持调试或扩展至LCD模块
- .
- RS232, RS485, CAN , USB接口
- .
- 开放式连接器用于MED-EKG开发电路板
- .
- 低功耗
- .
- DIP开关和按钮用于用户输入
- .
- MMA7361L 三轴加速度计
请确保在TWR-MCF51MM USB之前连接TWR-SER USB. 没有连接TWR-SER USB的情况下请勿连接TWR-MCF51MM USB, 否则会造成设备损坏.
