TSS-110-01-L-D

SAMTEC TSS-110-01-L-D Wire-To-Board Connector, 2.54mm, 20Contacts, Header, TSS Series, Through Hole, 2Rows

针座 通孔 20 位置 0.100"（2.54mm）

欧时:
HEADER TH 20POS 2.54MM 2 ROW

得捷:
CONN HEADER 20POS .100" T/H GOLD

艾睿:

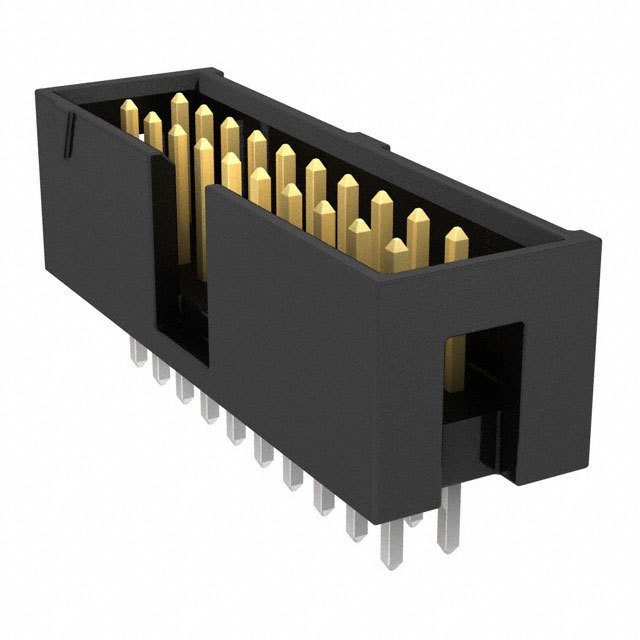

Safety is an important concern when designing electronic devices. Samtec&s;s shrouded TSS-110-01-L-D header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 3 A/contact. It uses the solder termination method. This product is 29.21 mm long, 9.27 mm tall and 9.27 mm deep. This connector has an operating temperature of -55 to 125 °C. TSS-110-01-L-D is housed in black polyester.

安富利:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSS-110-01-L-D  Wire-To-Board Connector, 2.54 mm, 20 Contacts, Header, TSS Series, Through Hole, 2 Rows
