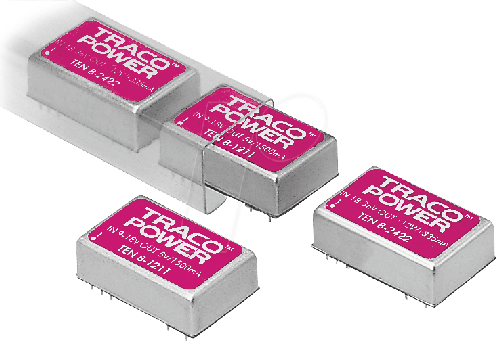

TRACOPOWER TEN 8-4822 直流/直流转换器, 隔离电路板安装, 金属外壳, 通孔安装, 8W, 12V, 335mA, -12V, 335mA
The is a 2-output 8W board-mount isolated high performance DC/DC Converter featuring wide 2:1 input voltage ranges with industry standard footprint. It offers 36 to 75VDC input voltage range and ±12VDC output voltage. A very high efficiency allows an operating temperature range of -40 to 85°C. A built-in EMI input filter complies with EN 55022, class-A without external components. Further standard features include remote ON/OFF and short-circuit protection. This converter is suitable for use in many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.
- .
- Shielded metal casing with insulated base plate
- .
- 87% Typical efficiency
- .
- 48VDC Nominal input voltage
电源电压DC 48.0 V
额定功率 8 W
输出接口数 2
输入电压DC 36.0V ~ 75.0V
输出电压 ±12 V
输出电流 335 mA
隔离电压 1.5 kV
输入电压Max 75 VDC
输入电压Min 36 VDC
输入电压DC Max 75 V
输入电压DC Min 36 v
输出功率Max 8 W
电源电压 48 V
输入电压 36V ~ 75V
安装方式 Through Hole
封装 DIP
长度 32 mm
宽度 20.3 mm
高度 10.2 mm
封装 DIP
包装方式 Tube
制造应用 Industrial, 电源管理, 通信与网络, 工业, Sensing & Instrumentation, 传感与仪器, Communications & Networking, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
