TR-60522

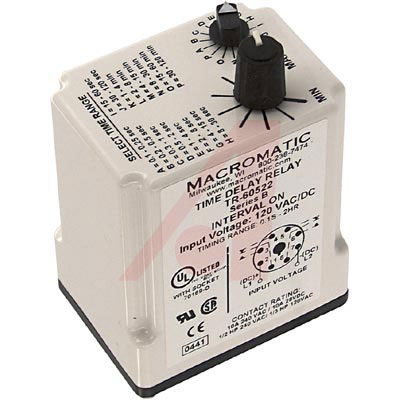

MACROMATIC CONTROLS  TR-60522  延时继电器, DPDT

Upon application of input voltage, the relay contacts transfer and a preset time begins. At the end of this preset time, the relay contacts return to their normal position. Input voltage must be removed and reapplied to reset the time delay relay.

.

*Features:**

* 16 Timing Ranges in a Single Timer

* Covers 0.1 S to 2 H 0.6 S to 24 H on TR-631, TR-651 and TR-661 Units and 0.1 S to 30 M on TR-606 Units

* User Selects Desired Time Range by Setting a Rotary Switch — No Math Required or DIP Switches to Set

* Adjust within Selected Range Using Potentiometer

* Standard 8- or 11-Pin Octal Socket Mounting

* All Units Operate on Both AC and DC

* Repeat Cycle and Delayed Interval Units Have Independently Selectable and Adjustable ON and OFF Times **Specifications:**

* DPDT 10 A @ 240 VAC/30 VDC

* 0.1% Repeat Accuracy

* Temperature: –28° to +65°C

* Dimensions: 1.7" × 2.4" × 3.5"
