TS4GCF200I概述

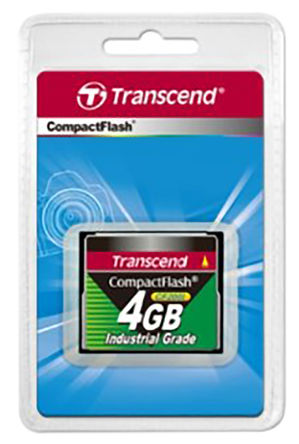

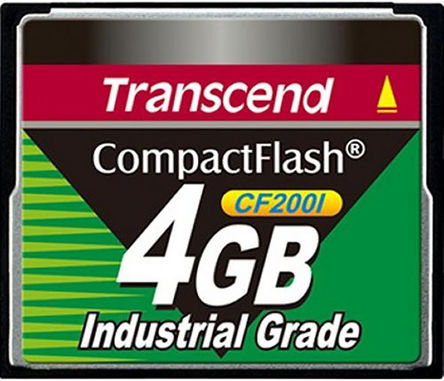

Transcend 600x 工业 CompactFlash 存储卡### CompactFlash 卡

The is a 4GB industrial temperature CF200I CF card. This module is extra rugged with excellent temperature flexibility and high performance. The CF200I industrial temperature CF card is specifically designed for industrial use and mission critical applications.

.
Built with superior quality SLC flash memory
.
BCH hardware ECC
.
Support global wear levelling, static data refresh, early retirement & erase count monitor function
.
Advanced power shield prevents data loss in the event of a sudden power outage
.
Support S.M.A.R.T self defined
.
CompactFlash specification version 4.1 compliant
.
Support security command
.
Operation modes, PC card memory, PC card IO, true IDE
.
True IDE mode supports UDMA0-5, MDMA0-4, PIO0-6 UDMA4 as default
.
Two year limited warranty
TS4GCF200I中文资料参数规格
技术参数

内存容量 4000000000 B

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

引脚数 50

封装 Module

外形尺寸

封装 Module

其他

产品生命周期 Active

制造应用 消费电子产品, Consumer Electronics, Industrial, 工业

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买TS4GCF200I
型号: TS4GCF200I
制造商: Transcend
描述:Transcend 600x 工业 CompactFlash 存储卡 ### CompactFlash 卡
