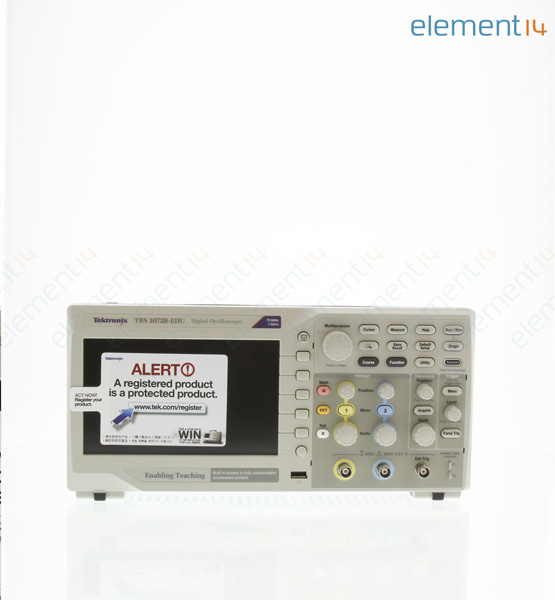

TBS1072B-EDU

TBS1000B-EDU 系列数字存储示波器TBS1000B-EDU 专门设计用于满足当今学校和大学的需求。 TBS1000B-EDU 数字存储示波器是使用创新的新课件系统的首款示波器，让教师能够将教学材料无缝地集成到 TBS1000-EDU 示波器上。 课件信息直接呈现在示波器显示屏上，可用于提供：逐步说明、背景理论、提示和小建议或学生记录其实验室工作的高效方法。200 MHz、150 MHz、100 MHz、70 MHz 和 50 MHz 带宽型号 2 通道型号 所有通道的采样速率均高达 2GS/s 所有通道的点记录长度均为 2.5k 高级触发器，包括脉冲和可选线路视频触发器 7 in WVGA 800X480 有源 TFT 彩色显示屏 34 次自动测量 双窗口 FFT，可同时监测时间和频率域 集成了课件功能 双通道频率计数器 缩放功能 自动设置和信号自动量程 连接： 前面板上有 USB 2.0 主机端口，可快速方便进行数据存储 后面板上有 USB 2.0 设备端口，可轻松连接至 PC ### 随附无源探头，每个通道一个：TPP0051：50MHz 无源探头，用于 TBS1052B-EDU；TPP0101：100MHz 无源探头，用于 TBS1072B-EDU 和 TBS1102B-EDU；TPP0201：200MHz 无源探头，用于 TBS1152B-EDU 和 TBS1202B-EDU；电源线、安装和安全手册、带客户文档的 CD。 ### Tektronix TBS1000B 系列示波器

The Digital Storage Oscilloscope Series is designed specifically to meet the needs of today"s schools and universities. It"s the first oscilloscope to use an innovative new Courseware system that enables educators to seamlessly integrate teaching materials onto the TBS1000B-EDU oscilloscopes. The Courseware information is presented directly on the oscilloscope display and can be used to provide; step by step instructions, background theory, hints and tips or an efficient way for students to document their lab work. The instrument series includes a 7-inch WVGA TFT colour display, up to 2 GS/s sampling rate, bandwidths from 50 MHz to 200 MHz, dual channel frequency counters and a 5 year standard warranty, just a few of the features that make the TBS1072B-EDU the industry"s best-value entry level oscilloscope for educational activities.

.

7 inch WVGA 800X480 Active TFT Colour Display

.

34 automated measurements

.

Dual window FFT, simultaneously monitors both the time and frequency domains

.

Built-in waveform limit and trend plot testing

.

Dual channel frequency counter

.

Zoom Function

.

Automated, extended data logging feature

.

Autoset and auto-ranging functions

.

Built-in context-sensitive help

.

Multiple-language user interface

.

Small footprint and lightweight - Only 124 mm deep and 2 kg

.

USB 2.0 host port on the front panel for quick and easy data storage

.

USB 2.0 device port on rear panel for easy connection to a PC

.

5 year manufacturer warranty
