TSW-106-23-T-D

SAMTEC TSW-106-23-T-D Board-To-Board Connector, 2.54mm, 12Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 12 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

立创商城:
TSW-106-23-T-D

得捷:
CONN HEADER VERT 12POS 2.54MM

艾睿:

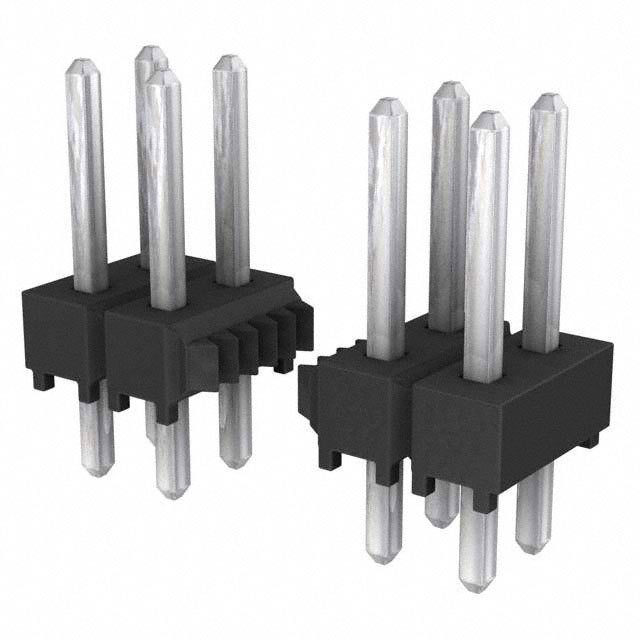

This unshrouded TSW-106-23-T-D header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 12 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. TSW-106-23-T-D is housed in black polyester. This product is 15.24 mm long, 8.38 mm tall and 5.08 mm deep.

安富利:
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-106-23-T-D  Board-To-Board Connector, 2.54 mm, 12 Contacts, Header, TSW Series, Through Hole, 2 Rows
