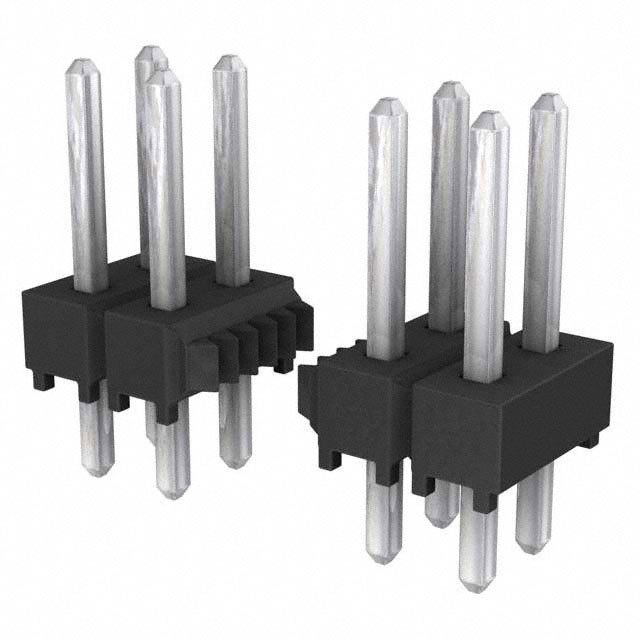

TSW-105-23-T-D

SAMTEC TSW-105-23-T-D Board-To-Board Connector, 2.54mm, 10Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 10 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 10POS 2.54MM

欧时:
.100" Terminal Strip

艾睿:
Mounting this unshrouded TSW-105-23-T-D header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-105-23-T-D is housed in black polyester. This product is 12.7 mm long, 8.38 mm tall and 5.08 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  TSW-105-23-T-D  Board-To-Board Connector, 2.54 mm, 10 Contacts, Header, TSW Series, Through Hole, 2 Rows
