TPP0500B参数规格_中文资料_数据手册PDF

TPP0500B概述

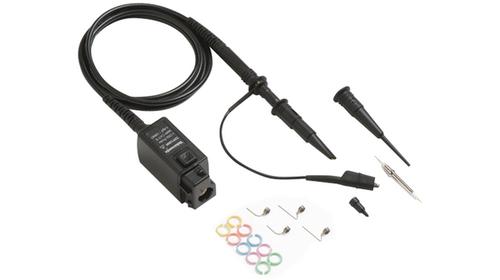

TEKTRONIX TPP0500B 示波器探头, 500 MHz, 无源, 300 V, 10:1

The is a high-bandwidth, general-purpose Probe from that offer breakthrough specifications designed for use with Tektronix MDO3000, MDO4000B, MSO/DPO4000B and MSO/DPO5000B series oscilloscopes, these probes provide up to 1GHz of analogue bandwidth with less than 3.9pF of capacitive loading. Compact probe head for probing small-geometry circuit elements, small probe body for enhanced visibility to the device-under-test.

.: Replaceable probe tip cartridges

.: Large accessory set for versatile connectivity

.: Rigid tip for secure device-under-test connectivity

.: Accurate high-speed passive probing

.: Accurate low voltage

TPP0500B中文资料参数规格

技术参数

带宽 500 MHz

输入电压Max 300 V

其他

Oscilloscope Probe Function Passive

Bandwidth 500MHz

Input Voltage Max 300V

Test Probe Attenuation 10:1

For Use With Tektronix MDO3000, MDO4000B, MSO/DPO4000B & MSO/DPO5000B Series Oscilloscopes

Product Range -

制造应用 Maintenance & Repair, Test & Measurement, Test & Measurement, Maintenance & Repair, 维护与修理, 测试与测量

符合标准

RoHS标准 Non-Compliant

数据手册

在线购买TPP0500B

型号： TPP0500B

制造商： Tektronix 泰克科技

描述：TEKTRONIX TPP0500B 示波器探头, 500 MHz, 无源, 300 V, 10:1

立即咨询

替代型号TPP0500B

型号/品牌	代替类型	替代型号对比
TPP0500B Tektronix 泰克科技	当前型号	当前型号
TPP0502 泰克科技	完全替代	TPP0500B和TPP0502的区别
TPP0500 泰克科技	完全替代	TPP0500B和TPP0500的区别
TPP1000 泰克科技	功能相似	TPP0500B和TPP1000的区别
