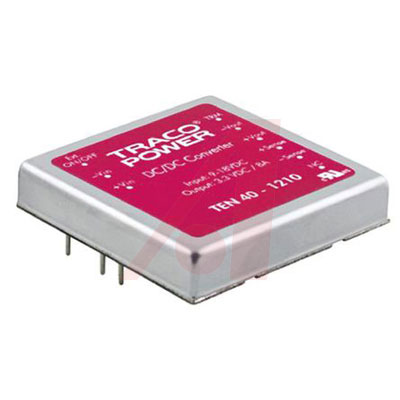

TRACOPOWER TEN 40-2410 Isolated Board Mount DC-DC Converter, Metal Case, Fixed, 1 Output, 18V, 36V, 40W, 3.3V
**Traco 40W Single/Triple Output Regulated Isolated DC-DC Converter - TEN 40 Series**
40W single/triple output regulated isolated DC-DC converters with a high power density. These single/triple output regulated isolated DC-DC converters have a high efficiency which allow an operating temperature range from -40°C to + 70°C. This series of single/triple output regulated isolated DC-DC converters are suitable for use in communication systems, industrial electronics and distributed power systems.
贸泽:
Isolated DC/DC Converters
Allied Electronics:
TRACOPOWER Iso DC-DC Converter, Vin 18 to 36Vdc, Vout 3.3Vdc, I/O isolation 1500Vdc
Chip1Stop:
Module DC-DC 1-OUT 3.3V 8A 40W 9-Pin
电源电压DC 24.0 V
额定功率 40 W
输出接口数 1
输入电压DC 18.0V ~ 36.0V
输出电压 3.3 V
输出电流 8 A
输出功率 26.4 W
隔离电压 1.5 kVDC
输入电压Max 36 VDC
输入电压Min 18 VDC
输入电压DC Max 36 V
输入电压DC Min 18 v
输出电流Max 8 A
输出功率Max 40 W
输入电压 18V ~ 36V
安装方式 Surface Mount
长度 2 in
宽度 50.8 mm
高度 10.2 mm
工作温度 40℃ ~ 75℃
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
