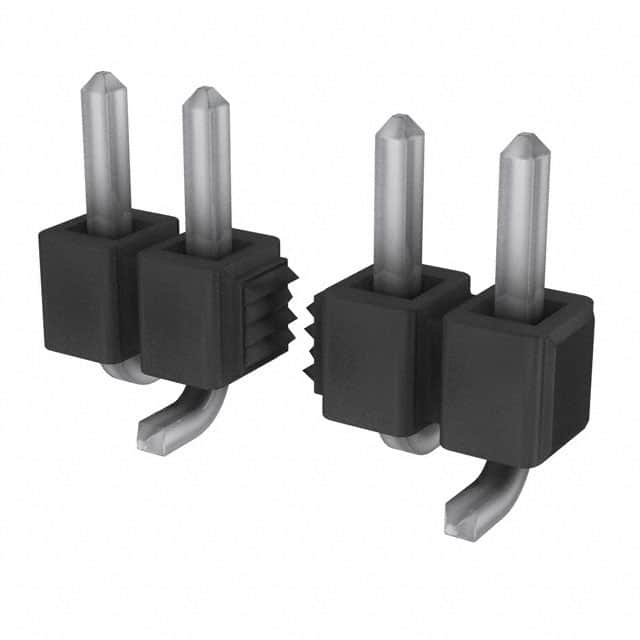

TSM-108-04-T-SV

集管和线壳 .100" Surface Mount Terminal Strip

针座 表面贴装型 8 位置 0.100"（2.54mm）

欧时:
.100" SMD HDR 1Row

立创商城:
2.54mm 方针

得捷:
CONN HEADER SMD 8POS 2.54MM

贸泽:
集管和线壳 .100" Surface Mount Terminal Strip

艾睿:
This unshrouded TSM-108-04-T-SV header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 475 VAC. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 5.4 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 20.32 mm long, 6.86 mm tall and 4.82 mm deep. This connector has an operating temperature of -55 to 105 °C. TSM-108-04-T-SV is housed in black liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST SMD Tube

Newark:
# SAMTEC  TSM-108-04-T-SV  Board-To-Board Connector, 2.54 mm, 8 Contacts, Header, TSM Series, Surface Mount, 1 Rows
