TSW-107-08-T-S-RA

SAMTEC TSW-107-08-T-S-RA Board-To-Board Connector, 2.54mm, 7Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔，直角 7 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 7POS 2.54MM

欧时:
.100" Terminal Strip

艾睿:

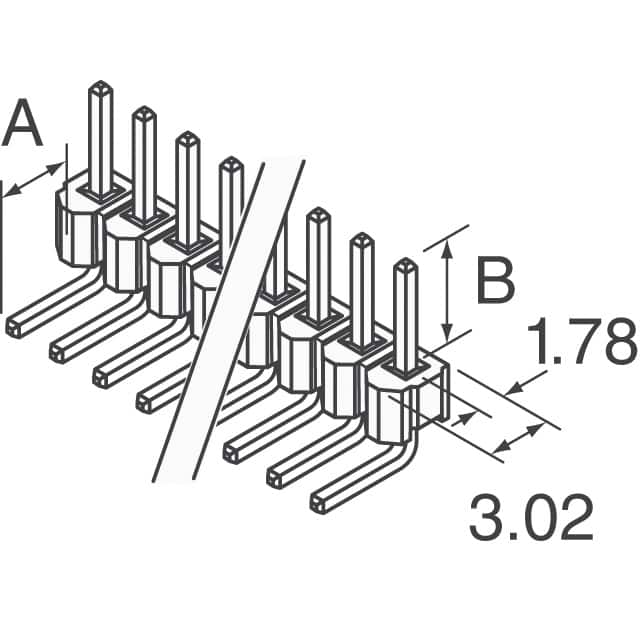

Are you looking for a solution to support physical configuration options on your PCB? Then mount this unshrouded TSW-107-08-T-S-RA header connector from Samtec on your PCB today! This HDR connector&s;s 7 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. This product is 17.78 mm long, 3.02 mm tall and 9.9 mm deep. This connector has an operating temperature of -55 to 105 °C. TSW-107-08-T-S-RA is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole

Newark:
# SAMTEC  TSW-107-08-T-S-RA  Board-To-Board Connector, 2.54 mm, 7 Contacts, Header, TSW Series, Through Hole, 1 Rows
