TWR-KW24D512概述

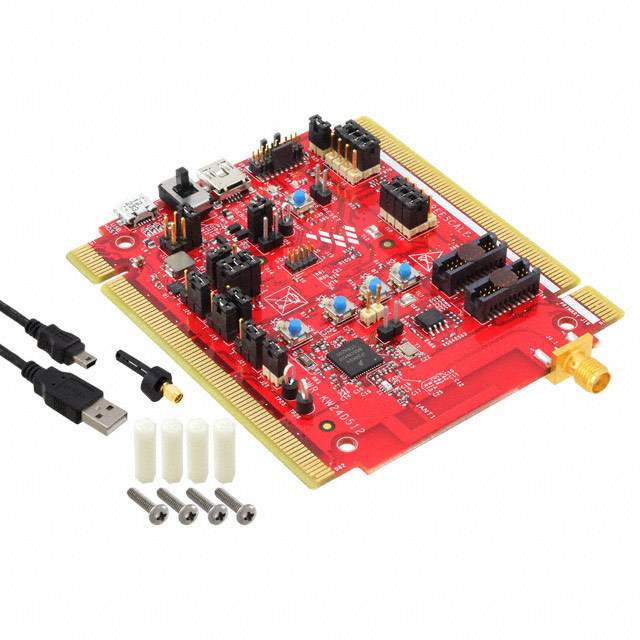

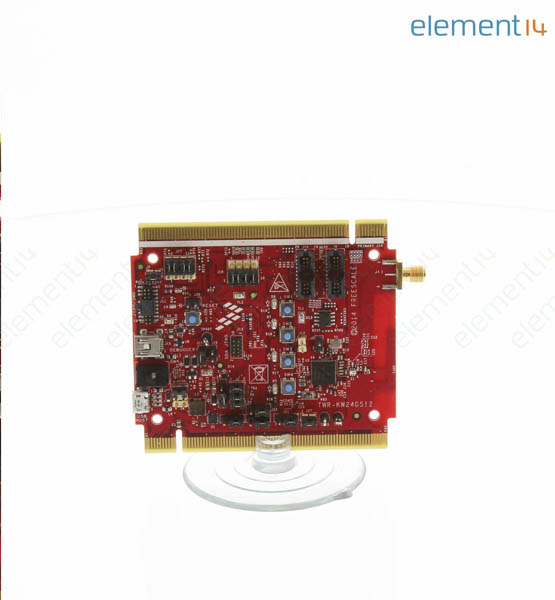

NXP TWR-KW24D512 Development Board, MCU, PCB F Antenna, Open-SDA Debugging, LEDs & Switches
The is a Tower System Module for MKW22D512V and MKW24D512V microcontroller. The Kinetis KW2x MCUs are a low-power, compact integrated family of devices consisting of a high-performance 2.4GHz IEEE 802.15.4 compliant radio transceiver and a powerful ARM® Cortex®-M4 core system with connectivity and precision mixed-signal analogue peripherals. Fully compliant IEEE 802.15.4 standard 2006 transceiver supports 250kbps O-QPSK data in 5.0MHz channels and full spread-spectrum encode and decode.
- .
- Can use PCB F antenna or bypass for external antenna via RF connector
- .
- USB port to interface with PC
- .
- Configurable I/O access
- .
- LEDs and switches for demonstration, monitoring and control
- .
- BeeKit tool with stacks and applications
- .
- Programmable frequency clock output CLK_OUT
- .
- External serial flash for over-the-air programming OTP support
- .
- Integrated open-standard serial and debug interface OpenSDA
- .
- 32MHz Reference oscillator
- .
- 2.4GHz Frequency operation ISM
