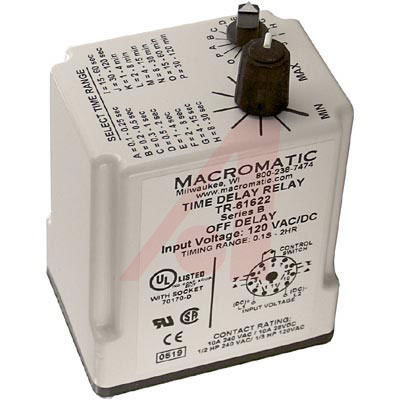

TR-61622

Relay; E-Mech; Timing; Off Delay; DPDT; Cur-Rtg 10A; Ctrl-V 120AC/DC; Socket Mnt; 11Pin

Input voltage must first be applied. Upon closure of the control switch, the relay contacts transfer and hold. Upon opening the control switch, a preset time begins. At the end of the preset time, the relay contacts return to their normal condition. Any application of the control switch will reset the time.

.

*Features:**

* 16 Timing Ranges in a Single Timer

* Covers 0.1 S to 2 H 0.6 S to 24 H on TR-631, TR-651 and TR-661 Units and 0.1 S to 30 M on TR-606 Units

* User Selects Desired Time Range by Setting a Rotary Switch — No Math Required or DIP Switches to Set

* Adjust within Selected Range Using Potentiometer

* Standard 8- or 11-Pin Octal Socket Mounting

* All Units Operate on Both AC and DC

* Repeat Cycle and Delayed Interval Units Have Independently Selectable and Adjustable ON and OFF Times **Specifications:**

* DPDT 10 A @ 240 VAC/30 VDC

* 0.1% Repeat Accuracy

* Temperature: –28° to +65°C

* Dimensions: 1.7" × 2.4" × 3.5"
