TR-65122

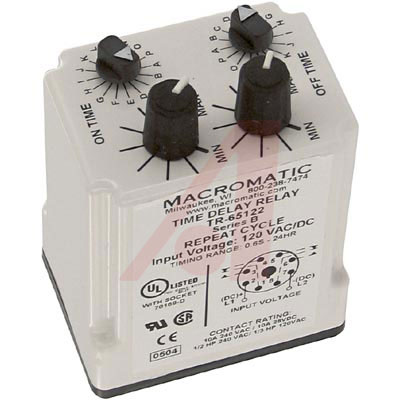

MACROMATIC CONTROLS  TR-65122  延时继电器, DPDT

Upon application of input voltage, the “On” time begins and the relay contacts transfer. At the end of the “On” time, the “Off” time begins and the relay contacts return to their normal condition. The sequence is repeated until input voltage is removed.

.

*Features:**

* 16 Timing Ranges in a Single Timer

* Covers 0.1 S to 2 H 0.6 S to 24 H on TR-631, TR-651 and TR-661 Units and 0.1 S to 30 M on TR-606 Units

* User Selects Desired Time Range by Setting a Rotary Switch — No Math Required or DIP Switches to Set

* Adjust within Selected Range Using Potentiometer

* Standard 8- or 11-Pin Octal Socket Mounting

* All Units Operate on Both AC and DC

* Repeat Cycle and Delayed Interval Units Have Independently Selectable and Adjustable ON and OFF Times **Specifications:**

* DPDT 10 A @ 240 VAC/30 VDC

* 0.1% Repeat Accuracy

* Temperature: –28° to +65°C

* Dimensions: 1.7" × 2.4" × 3.5"
