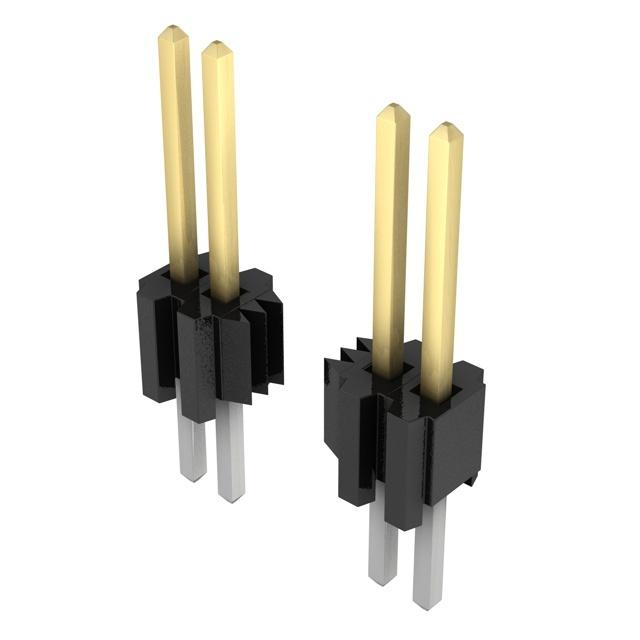

TMS-107-01-L-S

板至板连接, 1.27 mm, 7 触点, 针座, TMS Series, 通孔安装, 1 排

针座 通孔 7 位置 0.050"（1.27mm）

欧时:
HEADER TH 7POS 1.27MM

得捷:
CONN HEADER VERT 7POS 1.27MM

立创商城:
1.27mm 方针

e络盟:
板至板连接, 1.27 mm, 7 触点, 针座, TMS Series, 通孔安装, 1 排

艾睿:
Samtec brings you their unshrouded TMS-107-01-L-S header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 7 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a straight body orientation. It has a header type gender. Its pitch is 1.27 mm. This device has a maximum current rating of 5 A/contact. This product is 8.89 mm long, 8.38 mm tall and 4.98 mm deep. TMS-107-01-L-S is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 7 POS 1.27mm Solder ST Thru-Hole

Newark:
# SAMTEC  TMS-107-01-L-S  Board-To-Board Connector, 1.27 mm, 7 Contacts, Header, TMS Series, Through Hole, 1 Rows
