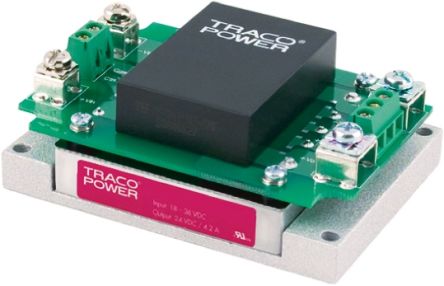

TRACOPOWER TEP 200-2413WIRCMF 直流/直流转换器 隔离式板载, 医用, 模块, 固定、可调节, 底板安装, 180 W, 15 V, 12 A
Traco 180-240W Chassis Mount Railway Compliant DC-DC Converter - TEP-200WIR Ser
180-240W single output isolated PCB mount DC-DC converters with a wide 4:1 input voltage range, adjustable output voltage and a high efficiency of up to 91% allowing full power operation without forced air cooling at 25°C. These railway compliant isolated DC-DC converters are chassis mount with a screw terminal block and have an integrated EMI filter to meet EN 55022 class A.
Wide 4:1 input voltage range
Integrated EMI filter to EN 55022, class A
Adjustable output voltage
EN 50155 approval for railway applications
High efficiency
No minumum load
Soft start
Sense line
Remote On/Off input
Reverse input voltage, overtemperature, short circuit and over voltage protection
EMC compliance: EN 55022 class A without external components
### 注
A DIN rail mounting kit is available, see stock number 745-1102
MTBF to MIL-HDBK-217F, at +25°C
Derating approx. 1.2 %/K above +25°C see datasheet
### 标准
EN 50155, UL 60950-1, IEC/EN 60950-1
### Traco - 75W 至 240W - TEP 系列
输出接口数 1
输出电压 15 VDC
输出电流 12 A
输出功率 180 W
隔离电压 2.25 kVDC
输入电压DC Max 36 V
输入电压DC Min 8.5 v
输出功率Max 180 W
输入电压 8.5VDC ~ 36VDC
安装方式 Chassis
长度 85 mm
宽度 61 mm
高度 33.8 mm
重量 240 g
包装方式 Bulk
制造应用 工业, Automation & Process Control, Industrial, Communications & Networking, 自动化与过程控制, ITE(商业),铁路, 电源管理, 通信与网络, Power Management
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
