TCP202A

TEKTRONIX  TCP202A  探头, 交流/直流电流, 15A, 50MHZ

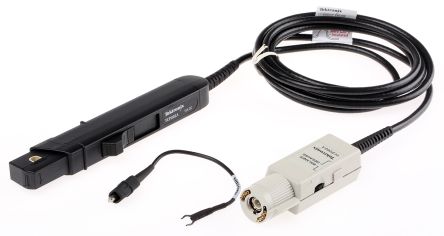

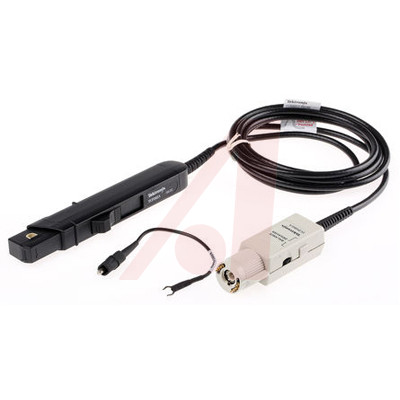

The is a high-performance easy-to-use AC/DC Current Probe designed for use with a variety of oscilloscopes. The TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. This AC/DC current probe provides sufficient performance to support 50MHz measurement system bandwidth. The TCP202A provides a maximum 15A DC + peak AC measurement range. This probe also provides excellent accuracy to current levels as low as 10mA, important for meeting today"s challenging current measurement needs.

.

Easy to use and accurate AC/DC current measurements

.

DC to >50MHz Bandwidth

.

Core jaw diameter of 5mm 0.2"

.

Accurately measures current levels as low as 10mA per division

.

High accuracy with typically less than 1% DC gain error

.

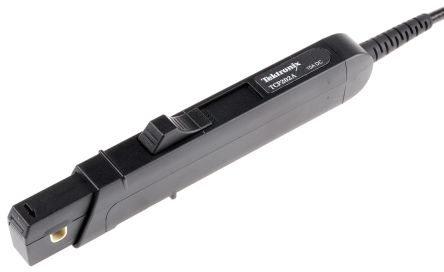

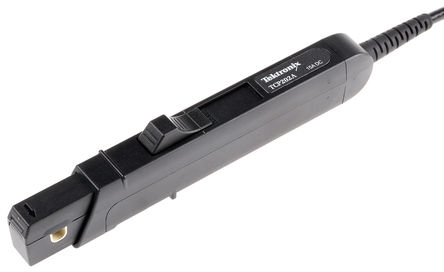

Split-core construction allows easy circuit connection

.

Low noise and DC drift

.

15A DC + Peak AC maximum current capability

.

50A Peak pulse current capability

.

Connects directly to oscilloscopes with the TekProbe™ interface

.

Provides automatic units scaling and readout on the oscilloscope display

.

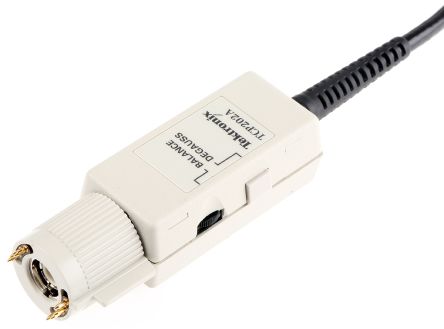

Degauss button and thumbwheel for DC offset adjustment
